1.4301 304 Cold Rolled Stainless Steel Coil TISCO SS 304 Strips
SUS304 / 1.4301 / 304 Stainless Steel Strips / Stainless Steel Coil / 304 ss strip Metal
Specification of our stainless steel strips
| Type | 304 Stainless steel strip |
| Size/thinckness | 0.1mm-8.0mm |
| Widthness | 6 - 600mm |
| Surface | 2B BA NO.4 NO.1 HL 8K.etc |
| Brand name | TISCO,BAOSTEEL , LISCO , BXSS POSCO |
| Standard | EN 10088-2 / ASTM A240 GB JIS G4305 |
| Coil width tolerance | within 0.2mm |
| Packing |
# shape wooden frame and waterproof paper |
| MOQ | within 500 kgs |
| Delivery time | 5 - 12 days based on the quantity |
304 Stainless Steel Strip Features
- Weldability: 304 stainless steel strip has good weldability. These strips products can be used for vessel parts, stainless steel welding pipes, stainless steel flexible hose and corrugated pipe, etc.
- Heat Resistance: Heat resistance means that 304 stainless steel strip can still maintain its excellent physical and mechanical properties at high temperatures conditions.
- Corrosion Resistance: When the amount of chromium atoms in the steel is not less than 12.5%, the electrode potential of the steel can be abruptly changed from a negative potential to a positive electrode potential. Prevent electrochemical corrosion.
Prime Quality, Precision Feature
When it comes to 304 grade stainless steel strips manufacturing, we get that you need a long term partner, not just a supplier. Whether you need the small samples or the metal strips solution from start to end, our promise is providing you with the highest quality stainless steel strips, in the shortest delivery time, and at the most competitive price with the highest quality.
As the precision stainless steel strips manufacturing expert, we do the tight tolerance, every work that it is challenging. You just provide us an coming idea, we help turn it into actual product for you!
304 Stainless Steel Strip Applications
304 stainless steel strip is the most widely used chromium-nickel stainless steel strip.
It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties.
This strip has good hot workability such as stamping and bending without heat treatment. It is resistant to corrosion in the atmosphere.
It is suitable for food processing line, storage and transportation, plate heat exchangers, bellows, household products, auto parts, medical appliances, building materials, chemicals industry, food industry, agriculture, ship parts, etc.
304 stainless steel is a nationally recognized food grade stainless steel material.
304 Stainless Steel Strip Chemical Composition
The chemical components of grade 304 stainless steel strip is summarized in the following table:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | ASTM A240 | ≤0.07 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00-20.00 | 8.00-11.00 | – |
304 Stainless Steel Mother Coil Mechanical Property
| Grade | Standard | Yield Strength Rp0.2 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Elongation % |
Hardness (HV) |
Hardness (HRB) |
|---|---|---|---|---|---|---|
| 201 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 35 | ≤ 260 | ≤ 101 |
| 202 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 40 | ≤ 218 | ≤ 95 |
| 301 | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 304 | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 210 | ≤ 92 |
| 304L | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316L | ASTM A240 | ≥ 177 | ≥ 480 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316Ti | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 317L | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 309S | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 310S | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
304 Stainless Steel Strip Production Tolerance
| Thickness(mm) | Width＜125mm | 125mm≤Width＜250mm | 250mm≤Width＜600mm |
|---|---|---|---|
| ≥0.03-0.10 | ±0.06T | ±0.10T | ±0.10T |
| ≥0.10-0.15 | ±0.01 | ±0.015 | ±0.020 |
| ≥0.15-0.20 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.20-0.25 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.25-0.30 | ±0.018 |
±0.025 | ±0.030 |
| ≥0.30-0.40 | ±0.020 | ±0.025 | ±0.030 |
| ≥0.40-0.50 | ±0.025 | ±0.030 | ±0.040 |
| ≥0.50-0.60 | ±0.030 | ±0.030 | ±0.040 |
| ≥0.60-0.80 | ±0.030 | ±0.040 | ±0.040 |
| ≥0.80-1.00 | ±0.030 | ±0.040 |
±0.050 |
304 Stainless Steel Strip Packaging
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.

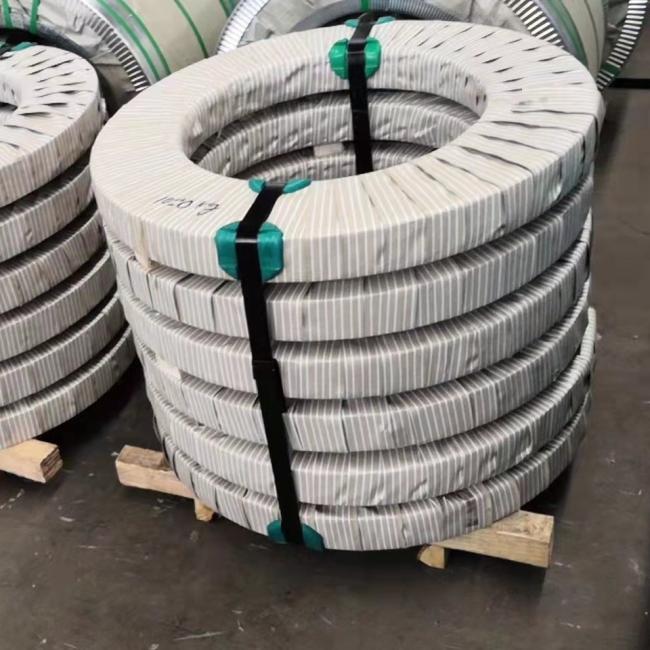

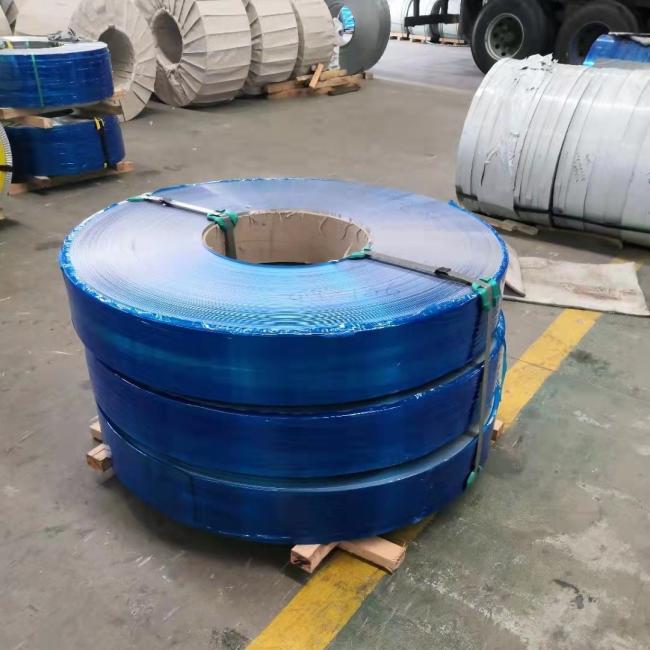

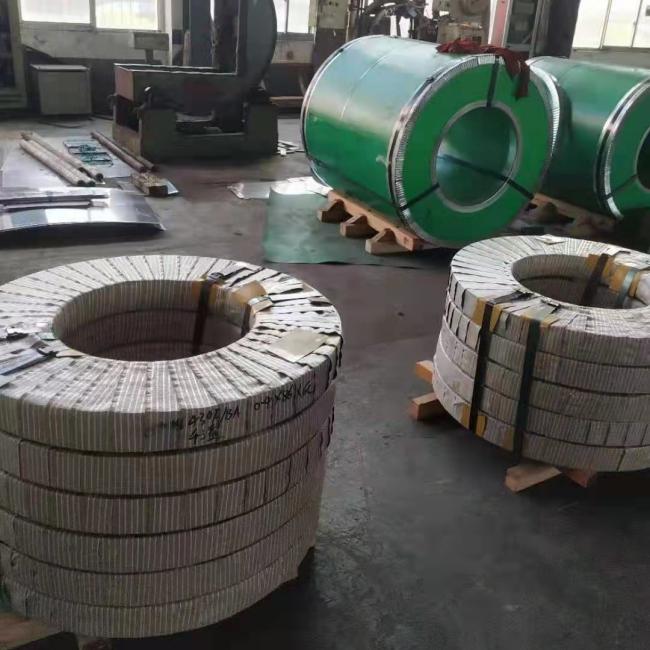

Products show
