China Furnace Heating Elements Nicr Alloy Spiral Nichrome Spring Wire for sale

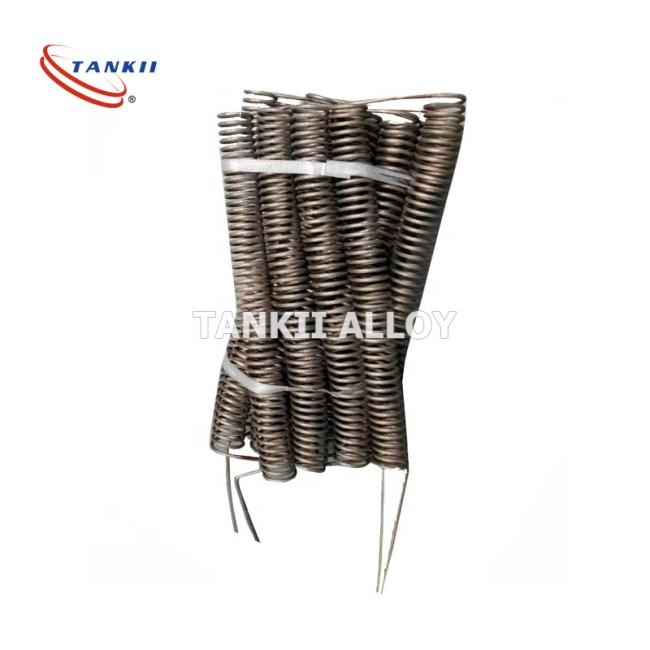

Furnace Heating Elements Nicr Alloy Spiral Nichrome Spring Wire

Price Negotiable

Price: negotiable

MOQ: 50kg

Delivery Time: 8-20 days

Brand: TANKII

Product Description

nichrome nicr 60 heating elements spring wire

Grade	Cr15Ni60
Size	1.2-10mm
Surface	acide washed/bright/oxidized
Resistivity	1.12±0.05μΩ.m
Highest temperature	1150℃
Density	8.2g/cm³
Tensile strength	750N/mm²
Elongation	≥20%

Grade	Highest temperature	Resistivity	Melting point	Tensile strength	Elongation
0Cr21Al4	1100℃	1.23±0.06μΩ.m	1500℃	750	≥12
0Cr25Al5	1250℃	1.42±0.07μΩ.m	1500℃	750	≥12
0Cr23Al5	1300℃	1.35±0.06μΩ.m	1500℃	750	≥12
0Cr21Al6NbCo	1350℃	1.43±0.07μΩ.m	1510℃	750	≥12
0Cr27Al7Mo2	1400℃	1.53±0.07μΩ.m	1520℃	750	≥10
KSC	1350℃	1.44±0.05μΩ.m	1510℃	750	≥16
Cr20Ni80	1200℃	1.09±0.05μΩ.m	1400℃	750	≥20
Cr15Ni60	1150℃	1.12±0.05μΩ.m	1390℃	750	≥20
Cr20Ni35	1100℃	1.04±0.05μΩ.m	1390℃	750	≥20
Cr20Ni30	1100℃	1.04±0.05μΩ.m	1390℃	750	≥20

Grade	Chemical composition%
	C	P	S	Mn	Si	Cr	Ni	Al	Fe
	≤				Si	Cr	Ni	Al	Fe
0Cr21Al4	0.12	0.025	0.025	0.7	≤1.0	17-21	≤0.6	3-4	balance
0Cr25Al5	0.06	0.025	0.02	0.5	≤0.6	23-26	≤0.6	4.5-6.5	balance
0Cr23Al5	0.06	0.025	0.02	0.5	≤0.6	20.5-23.5	≤0.6	4.2-5.3	balance
0Cr21Al6Nb	0.05	0.025	0.02	0.5	≤0.6	21-23	≤0.6	5-7	balance
0Cr27Al7Mo2	0.05	0.025	0.02	0.2	≤0.4	26.5-27.8	≤0.6	6-7	balance
Cr20Ni80	0.08	0.02	0.015	0.6	0.75-1.6	20-23	balance	＜0.5	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6	0.75-1.6	15-18	55-61	＜0.5	balance
Cr20Ni35	0.08	0.02	0.015	1.0	1-3	18-21	34-37	－	balance
Cr20Ni30	0.08	0.02	0.015	1.0	1-3	18-21	30-34	－	balance
