HD P6 Outdoor Waterproof Full Color Led Video Wall SMD 3535 Led Display Panels
P6 Outdoor Full Color Led Video Wall Display / SMD 3535 Led Video Display Panels with CE
♦ Our Mission:
To be the premier providr of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.
♦P6 SMD LED Screen Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
♦ P6 SMD LED Screen Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
P6 SMD LED Screen Technical Parameters
| Item | Module Parameter |
| Pixel type | Real full color |
| Pixel color | RGB |
| Module size | 320*320mm |
| Pixel led | SMD3535 |
| Pixels pitch | 6mm |
| Resolution rate | 32*32 |
| Driving way | 1/8 |
| Driving IC | MBI5024 |
| Working voltage | DC5V |
| Power | 80W |
| Working temperature | -30°C - +50°C |
| Item | Screen Parameter |
| Material | Aluminum |
| Color | Black |
| Size | 960*960mm |
| Resolution rate | 96*96 |
| Module quantity | 5*5 |
| Density | 10000dots/m2 |
| White balance luminance | 7000-11000cd/m2 |
| Color temperature | 6500 |
| Horizontal view angel | 110 |
| Vertical view angel | 50 |
| Protection grade | Before/after: IP67/IP65 |
| Non-Flatness | <1mm |
| Module interval | <1mm |
| Weight | 40kg |
| Maximal power/m2 | 750W |
| Frame frequency | ≥60Hz/s |
| Refresh frequency | 800-3840Hz |
| Gray grade | 1024*1024*1024Grade/1073741824 |
| Luminance adjusted | 256 grade by auto-optic/color &8 grade by hand |
| Input signal | RF, S-video, RGB, RGBHV, YUV, YC&Composition, etc |
| MTBF | >5000h |
| Life-span | >100000h |
| Speckles rate |
<0.0001 |

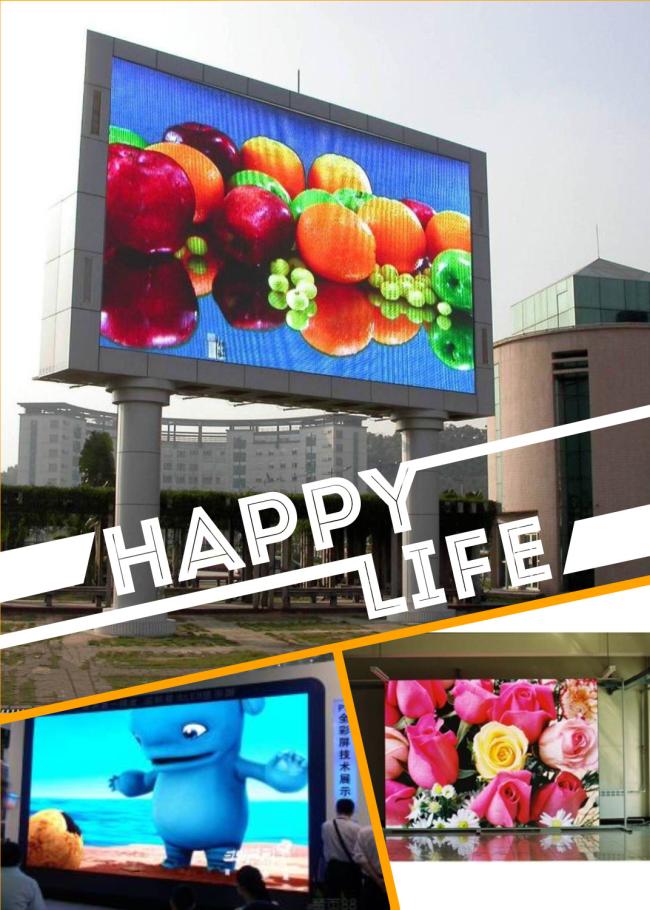

Our Cases:
Packing&Shipping:
FAQ
Q1:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2: How to proceed an order for led display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3: Is it OK to print my logo on led display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
