Outdoor Advertising Led Display Screen , P6 Outdoor Led Display Epistar Chip

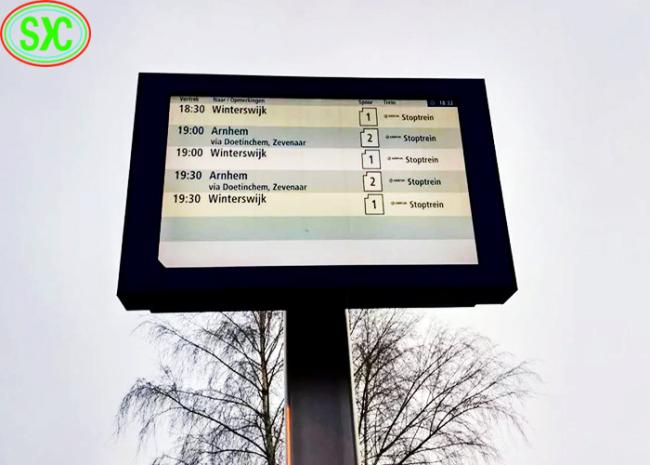

high definition outdoor p6 full color video function pillar led display
SHENZHEN SCXK ELECTRONICS CO., Ltd delivers customized event led projects that connect our clients to their audiences in a meaningful way.founded in 2005 specialized in Flexible led display, Transparent led screen and Rental LED display. Offer architects, designers and property owners a digital surface not previously available. Now with a wide range of resolution options, flexible form factors, light weight, low power and silent operation, developing negligible heat and delivering exceptional sustainability results, LED technology is transforming property precincts like never before.
Main products: Curved LED screen, Transparent LED screen, Rental LED screen.
Product Specifications
| LED tube chip parameters | ||||||
| Packaging | Color | Brand | Model | Brightness | Wave length | Quantity |
| 146 | R | Epistar | 9mil | 800-900 | 730-800 | 1 |
| G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 | |
| B | Epistar | 8x10mil | 230-260 | 230-260 | 1 | |
| LED module parameters | |||
| Pixels pitch: | 6.0mm | Pixel density: | 27777dot/m2 |
| Pixel configuration: | 1R1G1B | Module pixels: | 32*32=1024dots |
| Module size: | 192mm*192mm | Module weight: | 0.3KG |
| Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) |
| Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A |
| Module power consumption: | 30W | Driver mode: | 1/8 scan |
| LED cabinet parameters | |
| Standard cabinet size: | 576*576mm |
| Cabinet pixel: | 96*96=9216 dots |
| Cabinet square: | 0.33m2 |
| Cabinet weight: | 40KG |
| Max power consumption: | 450W |
| Average power consumption: | 250W |
| LED display parameters | |||
| Brightness: | ≥6500cd/m2 | Brightness homogeneity: | ≥0.95 |
| Best horizontal view angle: | 100±8° | Best vertical view angle: | 70±5° |
| Best view distance: | ≥6.0m | Blind spot rate: | ≤0.0003 |
| Max power consumption: | 600W/m2 | Application condition: | intdoor |
| System control parameters | |||
| Gray scale: | each R, G, B - 65536 | Color | 16777216 kinds |
| Repetition rate: | ≥60 frame/second | Refresh rate: | ≥1400Hz |
| Control method: |
PC control, video synchronization |
Brightness adjusting: | 256 auto/manual |
| Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | ||
| System working features | |||
| Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours |
| Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 |
| Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) |
| Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH |
| Protection feature: |
over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) |
||
Packaging Detail: Fumigation-free plywood box, airflight case, Carton, etc.
Note: different payment methods can be provided according to different countries.
Why Choose US ?
Professional wholesale and manufacturer of led screen
1. We have over 8 years’ experience of led screen .
2. We specialize in High configuration and high quality products.
3.We have professional R&D team who has professional development ability.
4. Integrated research and development, design, production, sales and
service.every material using inside will be picked up carefully and be fully tested.
5. 100% manufacture, 2 year spare parts’ guarantee time
6. We are factory, we can offer better price than Trade Company.
Feel free to reach out if you get interested in our led displays,Bella will be always here to give you our best service.
