COB Advertising LED Screens , Outdoor Electronics Digital Led Billboard IP65 advertising led screen
2024 High Quality China IP65 outdoor electronics digital led billboard / led advertising screen P6 P8 P10

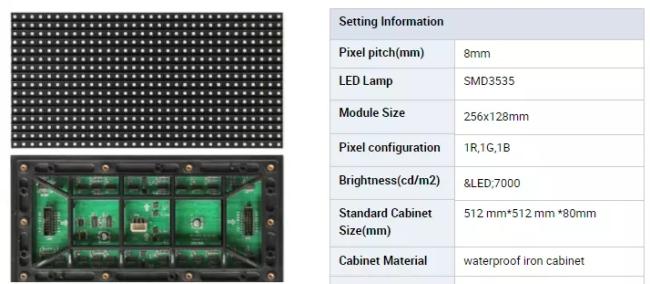

Technical Parameters
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Module Size | 256mm x 128mm |
| Module Resolution | 32dots x 16dots |
| Drive Mode | 1/4Scan, Constant Current |
| Brightness | 6500cd/sqm |
| Viewing Distance | 8m-200m |
| Interface Port | HUB-75 |
| Module Weight | 0.3KG/pcs |
| Viewing Angle | H: 140°; V:140° |

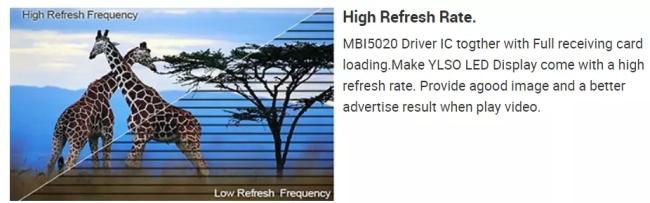

| Refresh Rate | 3840HZ |
| Standard Cabinet Size | 1024m x 1024mm |
| Cabinet Weight | 40G/pcs |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 650W/sqm |
| Ave. Power Consumption | 250W/sqm |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10%~95% |
| Control Method | Synchronous, 4G, WIFI, USB |
| Control PC | With DVI Graphic card |
| Operating System |
Win 98, Win2000, XP, Win7, Win8 , Win10 etc |
Product Description

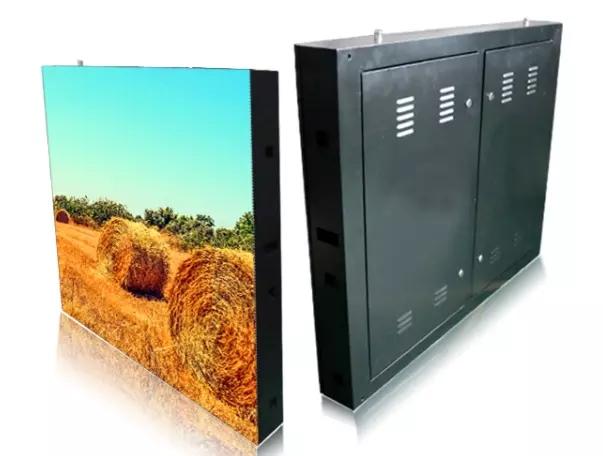

Smart design LED cabinet
IP rating: Waterproof level IP65 (front),Waterproof level IP54 (back), fearless of any weather conditions.
Cooling system: Scientific structure design make sure enough space with high efficient fans increase dissipation capability, ensure the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.

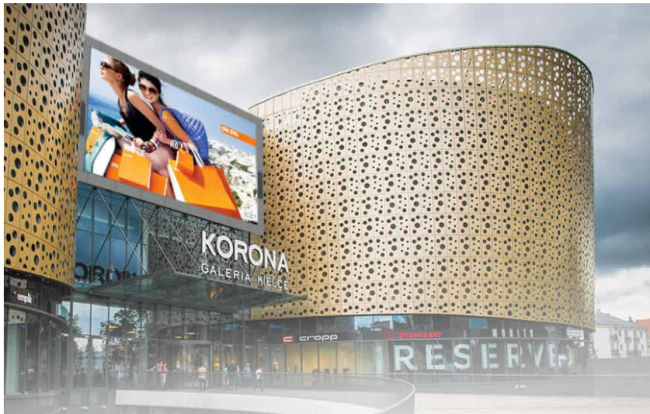

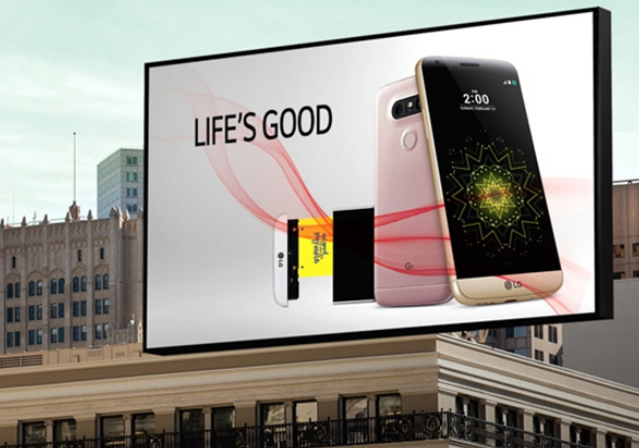

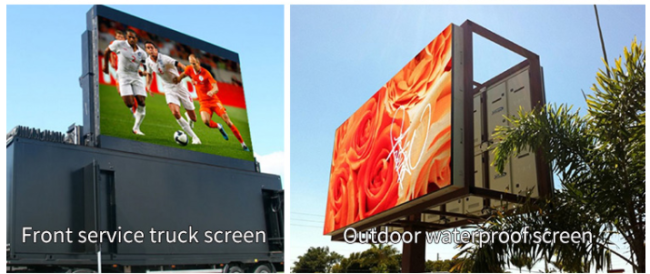

Application
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
