Ultra HD Stage LED Screen, Waterproof LED Video Wall Panel P3 P3.91 P4.81

Price Negotiable
Price: USD 1000-10000
MOQ: 1 sqm
Delivery Time: 7 working days after receive your payment
Brand: SCX
Product Description

Easy to install Stage led Display Screen P3 P3.91 P4.81 outdoor waterproof Led Video Wall Panel




Specifications



Technical Parameter
Pixel Pitch(mm)
3.91
4.81
LED Configuration
SMD2121
SMD1921
Module Resolution(W×H)
64*64
52*52
Module Dimension(mm)
250(W)×250(H)×15
250(W)×250(H)×15
Module weight(kg)
0.85
0.85
Module Max Power Consumption(W)
≦40
≦40
Cabinet Pixel Density(dots/m2)
65536
43264
Maintenance mode
Backside
Backside
Single Dot Brightness Correction
YES
YES
Single Dot Chroma Correction
YES
YES
White Balance Brightness(nits)
4000-5500
4000-5500
Color Temperature(K)
2000—9300 Adjustable
2000—9300 Adjustable
View Angle(H/V°)
140/120
140/120
Brightness/Color Uniformity
≥97%
≥97%
Max(Average) Power Consumption(W/m2)
1000(400)
1000(400)
Power Supply
AC90~264V,Frequency 47-63(Hz)
AC90~264V,Frequency 47-63(Hz)
Refresh Frequency(Hz)
50&60
50&60
Drive Mode
Constant Current Drive,13 Scan
Constant Current Drive,13 Scan
Gray Level
16384
16384
Refresh rate(Hz)
≥1500
≥1500
Color Processing Digit
16bit
16bit
Module power-off storage function
Save brightness, chroma correction data, module parameters
Save brightness, chroma correction data, module parameters
Functions
2K HD,4K Ultra HD Videos
2K HD,4K Ultra HD Videos
Lifespan(hrs)
100,000H
100,000H
Operating Temperature/Humidity(℃/RH)
±-10-40/±10-80%RH
±-10-40/±10-80%RH

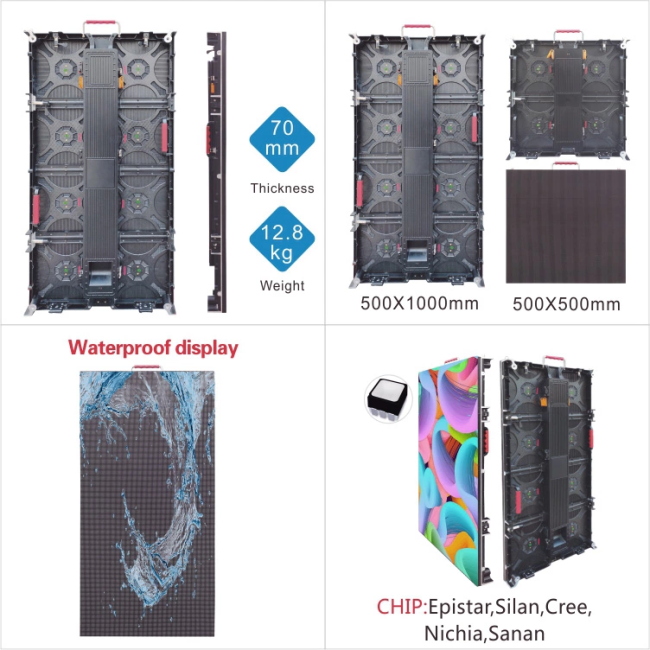

Product Details

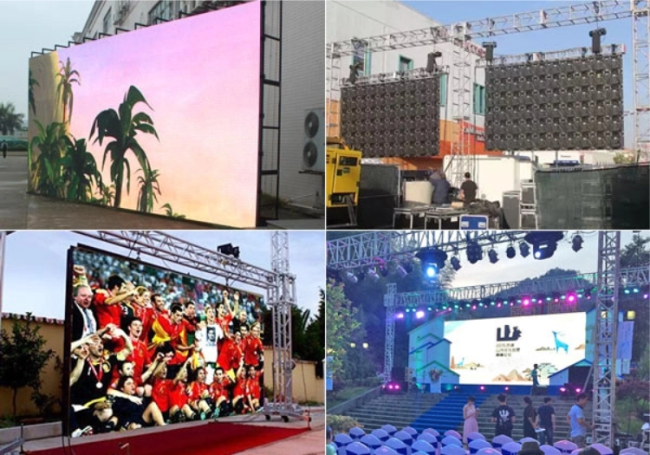

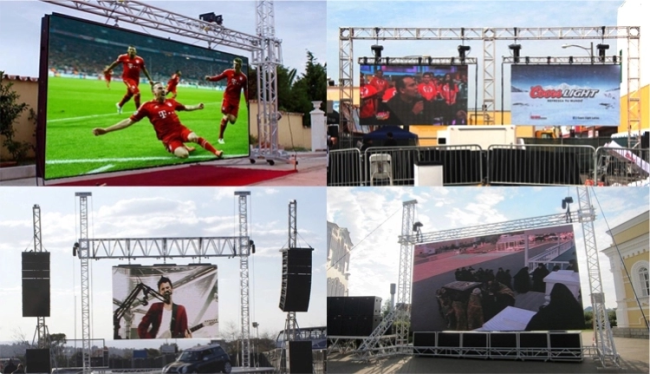

Project








Our Service


1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
