40KHz heater LED display 30L ultrasonic washer machine cleaning fast and effective
With Heated adjustable and timer adjustable JP-100S 40khz 30L
JP-100S

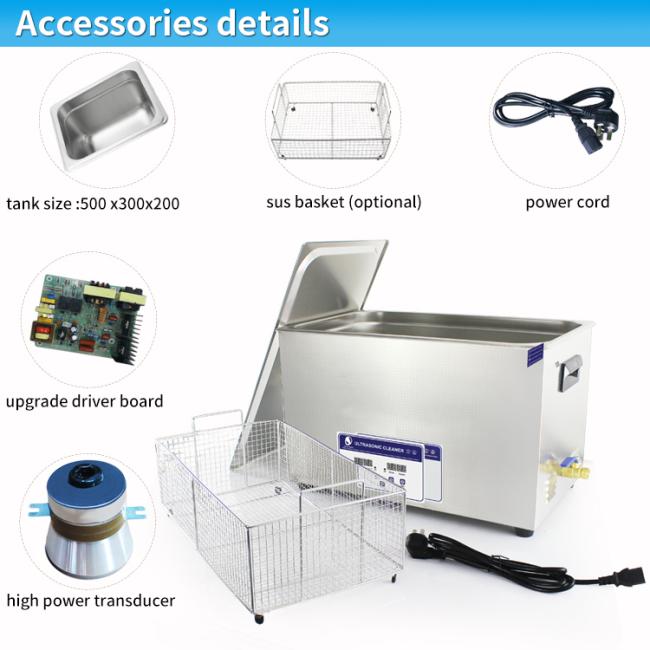

1*ultrasonic cleaner
1*English manual
1*power cord
1*SUS basket and lid
JP-100S specifiaction
| Model | JP-100S(digital timer&heater) |
| Tank capacity | 30L (with drainage) |
| Tank size(mm) | 500*300*200(L*W*H) |
| Unit size(mm) | 530*325*325 |
| Box packing(mm) | 635*405*390 |
| Ultrasonic power | 600W |
| Heating power | 500W |
| Timer | 1~30min adjustable |
| Heater | 0 ~80C adjustable |
| Frequency | 40,000Hz |
Features:
1. Stainless steel tank has resistance to wear and long work life.
2. Tank capacity: 30L, with timer & heater adjustable knobs.
3. With Stainless steel basket
4. Use just tab water, orindustrial alcohol and solvent cleaner for more higher cleaning requirement
5. Industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6. Certification: CE&RoHS , ISO9001
Comany info.
Skymen Cleaning Equipment Shenzhen Co., Ltd. is one of the professional manufacturer which specialized in produce and design ultrasonic cleaner, include household ultrasonic cleaner, bentchtop ultrasonic cleaner, industrial ultrasonic cleaner, submersible transducer, etc.

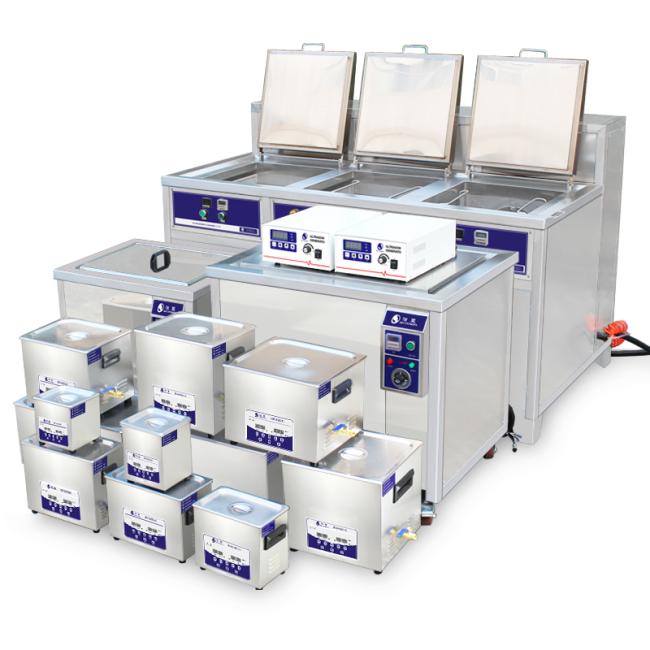

Other product specifications
Power adjustable and digital model
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| JP-120ST | 500x300x250 | 670x480x700 | 38 | 240-600 | 28/40 | 1500 | 1-99 | 0-80 |
| JP-180ST | 500x350x300 | 680x530x700 | 53 | 360-900 | 3000 | |||
| JP-240ST | 550x400x350 | 730x580x770 | 77 | 480-1200 | 3000 | |||
| JP-300ST | 550x450x400 | 730x618x800 | 99 | 1500 | 4500 | |||
| JP-301ST | 800x300x400 | 940x420x800 | 96 | 1500 | 4500 | |||
| JP-360ST | 600x500x450 | 805x705x780 | 135 | 1800 | 4500 | |||
| JP-480ST | 700x500x500 | 870x705x790 | 175 | 2400 | 6000 | |||
| JP-600ST | 800x600x500 | 970x770x800 | 264 | 3000 | 6000 | |||
| JP-720ST | 1000x600x600 | 1170x770x715 | 360 | 3600 | 9000 |
S series
Digital adjustable and LED display.
| Model | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| JP-010S | 150×135×100 | 175×160×210 | 2 | 60 | 40 | 100 | 1-30 | 0-80 |
| JP-020S | 240×135×100 | 265×165×220 | 3.2 | 120 | 100 | |||
| JP-030S | 300×150×100 | 325×180×225 | 4.5 | 180 | 200 | |||
| JP-031S | 300×150×150 | 325×180×280 | 6.5 | 180 | 200 | |||
| JP-040S | 300×240×150 | 325×265×280 | 10.8 | 240 | 200 | |||
| JP-060S | 330×300×150 | 360×325×285 | 15 | 360 | 300 | |||
| JP-080S | 500×300×150 | 530×325×285 | 22 | 480 | 500 | |||
| JP-100S | 500×300×200 | 530×325x325 | 30 | 600 | 500 |
