High Definition 960P Vehicle Mounted Cameras 15M IR in car dvr camera system
Price:
negotiation
MOQ:
1 pcs
Delivery Time:
3-5 days after confirm the payment
Brand:
Recoda
Product Description
High Definition 960P Vehicle Mounted Cameras 15M IR in car dvr camera system
Advantage:
Wide application, IR Day/ night metal box camera
960P (1280 * 960) resolution
Low poer consumption for using longer
Easy installtion on ceilling or wall, surface or flush mount.
Waterproof IP66
Specification:
| Model | CM04-AHD |
| Pick up Device | 1/3” SONY IMX238 |
| TV System | PAL/NTSC(OPTIONAL) |
| Effective Pixel | 1280Hx960V |
| Sensitivity | 0 lux (IR LEDs On) |
| Scanning System | progressive scan RGB CMOS |
| Synchronization | Internal |
| Infrared Spectrum | 850nm or 940nm |
| S/N Ratio | More than 50dB(AGC Off) |
| Noise Redution | 3D |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Infrared LED | 12 LEDs |
| Infrared LED Range | 5m |
| Video Output | AHD 1 Vp-p, P 75Ω |
| Gamma Ratio | 0.45 |
| Lens | f3.6mm Megapixel |
| Pan Adjusting | N/A |
| Tilt Adjusting | 0-62 Degree |
| Power Supply | 12V DC ±10% |
| Power Consumption | 110mA |
| Dimensions (ø X H) | 54 x48mm |
| Net Weight | 109g |
| Weatherproof/Water Proof | IP66 |
| Operating Temperature | -20°C to +65°C |
| Operation procedures | Connection | size |
 |
 |
 |

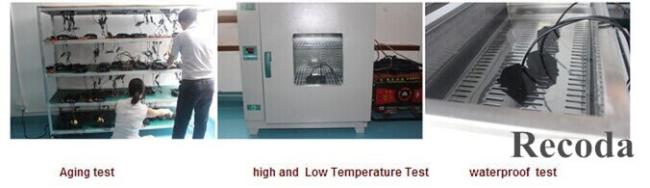

Every items will be tested fefore sending out, including aging test, high and low temperature test, waterproof test.
Recording Video demo:
