Aluminium Door Track System Acoustic Partition Wall / Sliding Movable Partition Wall Systems

Price Negotiable
Price: US $ 78-125 per square meter
MOQ: No MOQ
Delivery Time: 7-15 days
Brand: BUNGE
Product Description

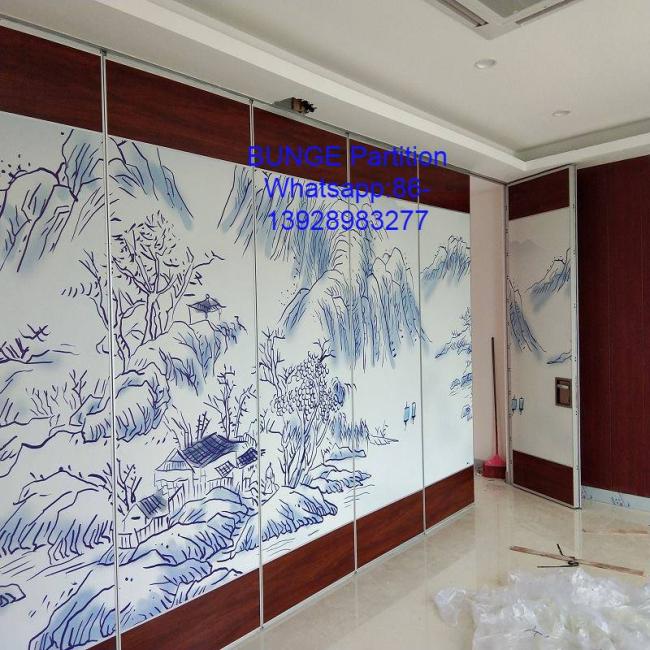

Aluminium Door Track System Acoustic Wall Partitions Movable Sliding Partition Walls



Technical Information:



Model BG65 Series BG80 Series BG100 Series BG High-Series
Suspensionsystem Aluminum hanging Steal Hanging
Basic Thickness 65 mm 80 mm 100 mm 100 mm
Total thickness 65/75/85/95mm 80/90/100/110mm 100/120/130mm 100/120/130mm
Max Height Up to 3800 mm Up to 6000 mm Up to 8000 mm Up to 15000 mm
Width 600-1230mm 600-1230mm 800-1230mm 800-1230mm
Floor/Ceiling Sealing Strength Telescopic aluminum tube with rubber strip.
Side walls sealing strength Double seal tape
Sound insulation level 26-30 db 28-34 db 32-40 db 42-52 db
Panel structure Aluminum frame with wooden keel Aluminum frame with steel keel
Surface material Melamine laminate/fabric/PU leather/wallpaper/veneer/customized


Sliding Partition Walls Features

1. Large selection of standard finish treatment.


2. It can quickly and easily separate the space.


3. Retractable top and bottom seals allow easy movement.


4. Quick divide by simple pull / latch operation.


5. No floor track is needed for sliding partition walls for rooms.


6. Tight vertical seal prevents sound leakage and helps align the panel during installation.


7. Sliding office partition walls are a modern decorative style with noise insulation, heat insulation, and fireproofing function.





Sliding Partition Walls Application



Sliding partition wall is a range of acoustically high-performance and beautiful divider for creating the most flexible space in offices,conference room, schools, colleges, churches, hotel meetings, restaurants, shops, hotels, inspection centers, multi-function rooms, stations, clubs, art centers, stadiums, sports centers, art museums, the court, convention centers, golf clubs, and functional suites.



With high levels of sound attenuation and custom parking, office partition walls in room provides a range of solutions for even the most complex requirements.



Finishes of Movable Partition Walls

  • Wooden (MDF, Plywood bare raw finish) & (Melamine, Veneer)

  • Fabric (fabric with mdf board hard covers) & (fabric with sponge soft covers)

  • Leather (leather with mdf hard covers) & (leather with sponge soft covers)

  • Wallpaper, Vinyl, Fireproof board

  • Acoustic panels

  • Tempered glass. etc.

Externally, most movable partition wall panels look the same, but it’s not simply the outside which makes a good movable wall, it is what’s inside the panel which makes the difference.
