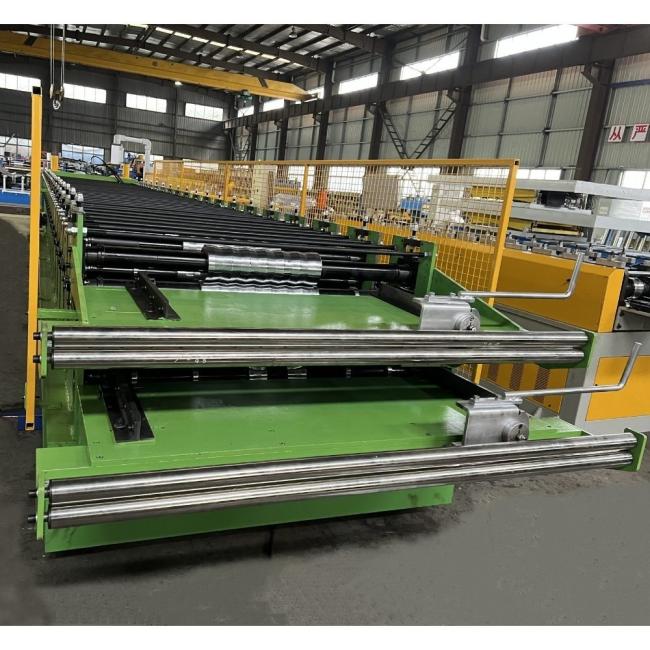

Galvanized Steel Coating Panel roll forming machine

Technological process

Uncoiling—Feedingwithguide——PreCutting——Rollforming—Cutting—Products collecting

Coating=Galvanized Iron/Zinc-Aluminium
Thickness=0.20-0.7mm
Sheet width=1000mm (Input)
Sheet width=840mm (Output)
Yield Strength=550Mpa

 hydraulic de-coiler

Coil inner Diameter: ￠460-520mm

Max out diameter of the coil:￠1500mm

Max Coil Width: 1000mm

Control box: cantilever

Electrical control system part

(1) Power supply :380V, 50hz, 3Phase(can be adjusted according to requirements)

(2) automatic measurement of length and quantity;

(3) Length and quantity are controlled by Siemens PLC

(4) The length error correction is convenient.

(6) Control panel: push-button switch and touch screen

(7) Length unit: mm (open the control panel)

some photos about productions:

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can

through negotiation for to solve the problems,and we supply the technical support for the whole life of the

equipment.
