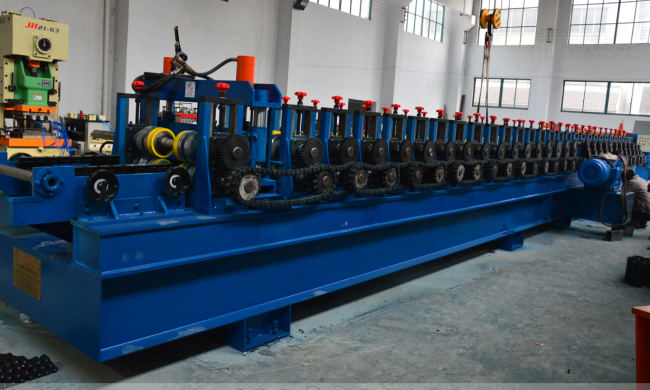

3.2T Metal Chain Drive Cable Tray Rolling Forming Machine 380V 50Hz 3 Phases
1-2mm Galvanized Steel Chain Drive Economic Cable Tray Roll Forming Machine Hydraulic Punching
Machine Components:
| Equipment name | Quantity |
| 10 Ton Passive un-coiler | 1 set |
| Coil Levelling device | 1 set |
| Hydraulic Punching | 3 set |
| Hydraulic Pre-cutting | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control system ( including control box) | 1 set |
| Out tables | 2 units |
Specifications of cable tray machine :
|
|
Items |
Specifications |
|
Materials |
Width of the profile |
100-600mm |
|
|
Thickness |
1-2mm galvanized coils and black steel |
|
|
Height of the profile |
50-100mm |
|
|
Un Coiler |
10 Ton passive de coiler |
|
Punching |
Way |
Hydraulic punching 3 set |
|
Forming system |
Rolling Speed |
3-5m/min |
|
|
Roller Stations |
About 20stations |
|
|
Roller Material |
Gcr15with quenching |
|
|
Shaft |
Dia 90mm |
|
|
Maim Motor Power |
15 kw |
|
|
Hydraulic cutting Power |
7.5 kw |
|
Cutting |
Material Of Cutting |
CR12 with quench treatment |
|
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
Electrical control system |
Electric Source |
415V, 50HZ,3 phase |
|
|
Control System |
PLC (Panasonic) as list in the note |
|
|
Weight |
About 18 tons |
|
|
Profile width and height adjustment |
Control by the motor |
|
|
Way Of Drive |
1.2 inch single chain |
|
|
Size of main machine |
About Length 13000mm* Width 1800mm* |
Working Flow of Roll Forming Machine
Profile drawing of cable tray
Photo Gallery
