Durable PPGI Color Steel Metal Roofing Machine With Servo Following Cutting
High Speed 15-20m/min Trapezoidal Roof Tile Making Machine Thickness 0.4mm-0.7mm
Technical Parameter
| S.N | Items | Descriptions |
| 1 | Coil width | 1250mm |
| 2 | Roller stations | 22 stations |
| 3 | Control system | PLC Delta |
| 4 | Rolling Speed | 15-20m/min(cutting time is not include) |
| 5 | Steel sheet Thickness | 0.3-0.8mm color painted sheets and galvanized steel |
| 6 | Roller Material | 45# forge steel, coated with chrome |
| 7 | Shaft Material and DIA | ￠70mm,material is 45# forge steel, Chrome with quenching |
| 8 | Main Motor Power | 7.5kw Anhui wannan Brand |
| 9 | Hydraulic Pressure | 12Mpa |
| 10 | Wall plate thickness | 16mm |
| 11 | Tolerance | +-1.5mm |
| 12 | Power supplier | 380V, 50HZ,3 phase |
| 13 | Way Of Drive | 1 inch single chain |
| 14 | Color Of The Machine | Blue |
| 15 | The size of the forming machine | 9000*1500*1000mm |
| 16 | Machine weight | about 10 tons |
Machine Component
|
5 tons hydraulic de-coiler |
1 set |
|
Pre cutting device |
1 set |
|

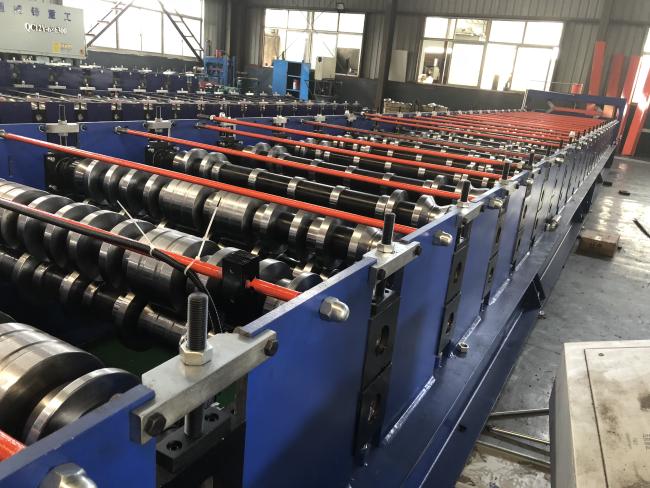

Main roll forming machine |
1 set |
|
PLC Control box |
1 set |
|
4 meters conveyor |
1 set |
|
6 meters auto stacker |
1 set |

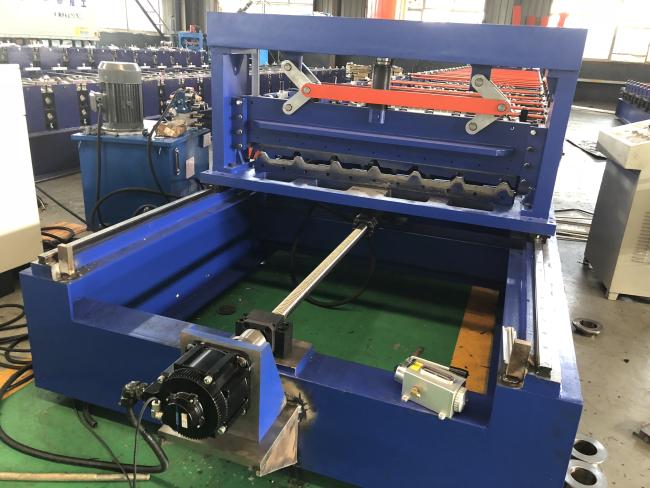

| servo following cutting device | 1 set |
| Servo motor | 1 set |
Advantage
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4.The system is easy to operate and use. PLC: Delta(Can customize as customer's require)
5.the surface of the final product is very smooth and beautiful without any scratch on the surface.
6.customized:design the machine according to your specification and profile drawing.(for your reference)
7. It is unit one, hydraulic station and control box is under machine frame to save more space
8. only need one wire to operate
Application
The steel panel produced by this machine is beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures and modern villas.
Profile Drawing
