Ce Iso Certification 0.3-0.8mm Color Steel 658mm Width Self Lock Roofing Sheet Roll Forming Machine
Ce Iso Certification 0.3-0.8mm Color Steel 658mm Width Self Lock Roofing Sheet Roll Forming Machine
1. Technical Parameter
NO. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.8 mm | |
Machine | Roller station | 20 or depend on customer' drawing |
Shaft diameter | 75 mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine size | About 8.5*1.5*1.3 m | |
Machine weight | About 6 tons | |
Machine color | As customer need | |
Working speed | 8-12m/min | |
Cutter | Hardness | 50-58 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main motor | 7.5 KW | |
Pump motor for cutter | 4 KW | |
Voltage | 380V/50HZ, 3P or Customized as customer' request | |
| PLC brand | Delta made in Taiwan |
Screen | Touchable screen | |
Language | Chinese and English or add customer need language | |
| Operation | Manual |
Weight capacity | 5 Tons |
2. Machine List
5 T passive de-coiler | 1 set |
Feeding with guide | 1 set |
Main roll forming machine | 1 set |
Cutting machine | 1 set |
PLC Control box | 1 unit |
Hydraulic station | 1 unit |
4Meters Passive Out table | 2 units |
Safety cover | 1 unit |

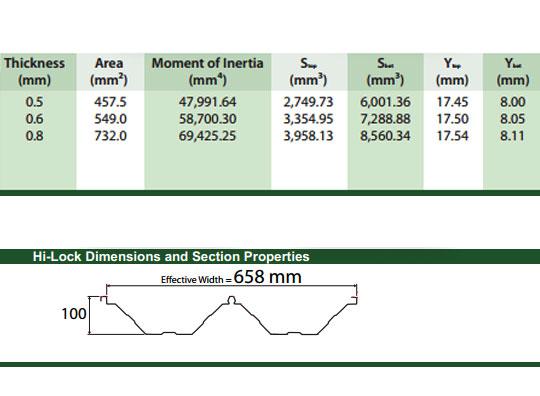

3. Profile Drawing
4. Application
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
5. Machine photo
At last, we will take photos for customer when loading to container.
