Plastic Riveting Auto Trim Spot Welding Equipment in Ultrasonic Technology

Definition of ultrasonic auto plastic welding:

The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.

Specifications:

Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs in the auto trim welding.

Advantages and Disadvantages of Ultrasonic in Auto Industry.

Advantages:

• Application in riveting, forming and welding
• Light weight, easy to take, easy to operate (handheld)
• Equipped with welding timer
• Easty to set time welding
• Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
• FET power output
• Automatic resonance
• Maintain the amplitude function automatically
• Starting: achieving maximum power with 105msec

Disadvantages:

Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).

Different Applications in Plastic Welding

• Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
• Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

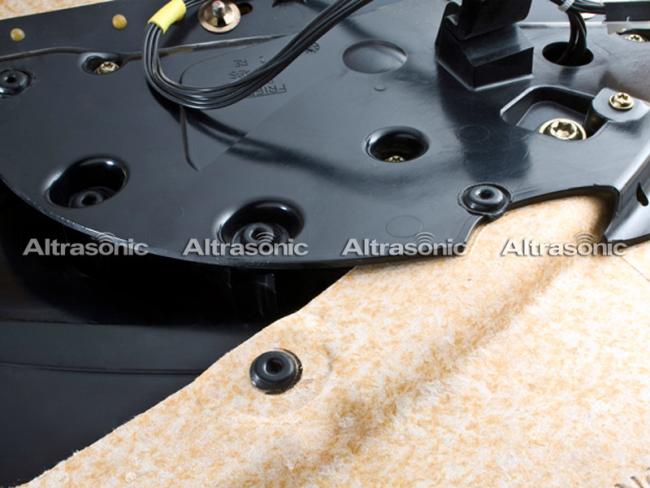

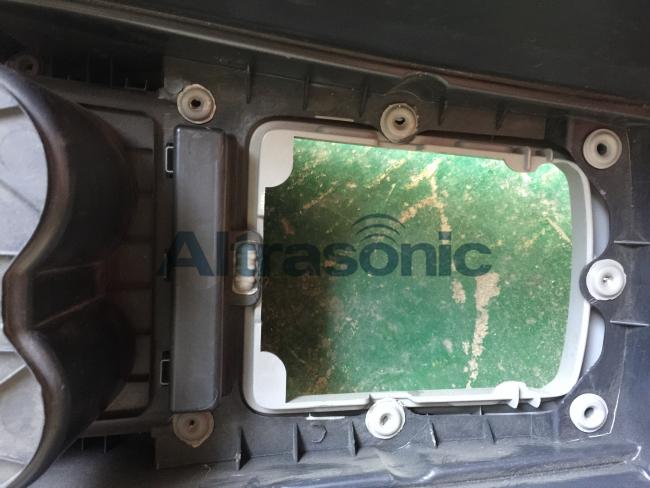

• Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.

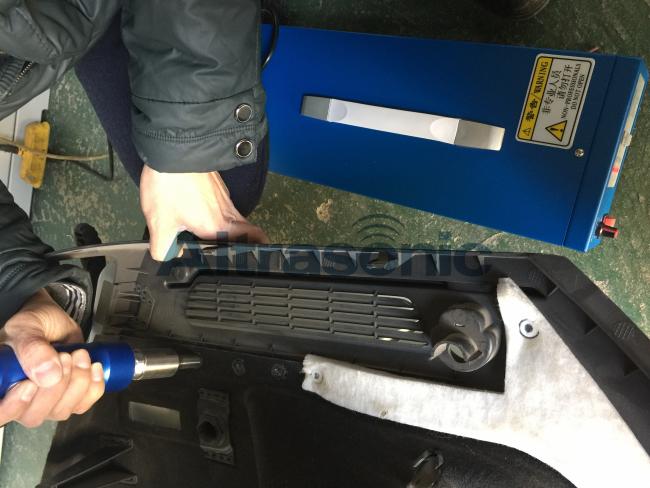

Principle of Portable Ultrasonic Plastic Spot Welding:

When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and

Components:

Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.
