Industrial 30Khz Ultrasonic Nebulizer Spary Coating Corrosion Resistant

Introduction:

Ultrasonic spraying nozzles are light weight flow through design for introducing liquids at the back of the nozzle. With nozzle materials made from titanium, stainless steel and fluoropolymer, many different solutions can be made into a mist. Sonaer ultrasonic atomizers are easy to clean, maintain, reliable and have no moving parts to wear out. Without the use of air pressure, varying viscosity liquids are pumped through the center of the nozzle, and is atomized. The droplets are then used in processes either for coating, burning, moisturizing, fabricating nano tubes or other applications that require droplets made from liquids.

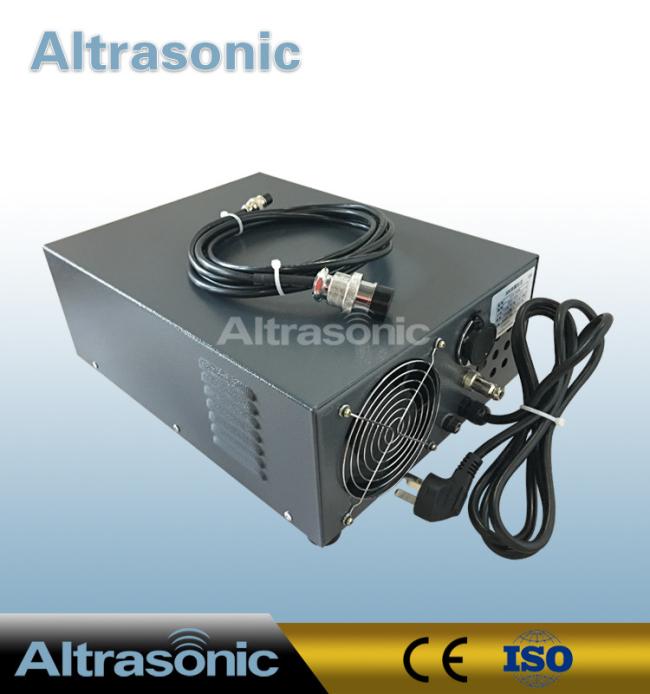

Technical Parameters:

Frequency: 30KHz
Power: 100W
Major power supply: 220V 50HZ 2A
Power Consumption: 0.001 Degrees/Kg
The matched transducer: HS-3030-4Z yellow
Atomization Volume: 50L/H
Average Particle Diameter Of Fog: 39um

Features:

· Reduce material consumption

· Non wasteful overspray

· Very low flow rate capabilities, inter-mitten or continuous

· Non clogging

· Corrosion resistant

· High precise and highly controllable

· Low cost spray nozzle replacement

TYPICAL APPLICATIONS

• Coating non-woven fabric, paper, etc.
• Laboratory spray drying
• Injecting moisture into a gas stream
• Applying minute amount of oil, fragrance or
• flavor onto a product
• Injecting small volume of reagents into a reactor
