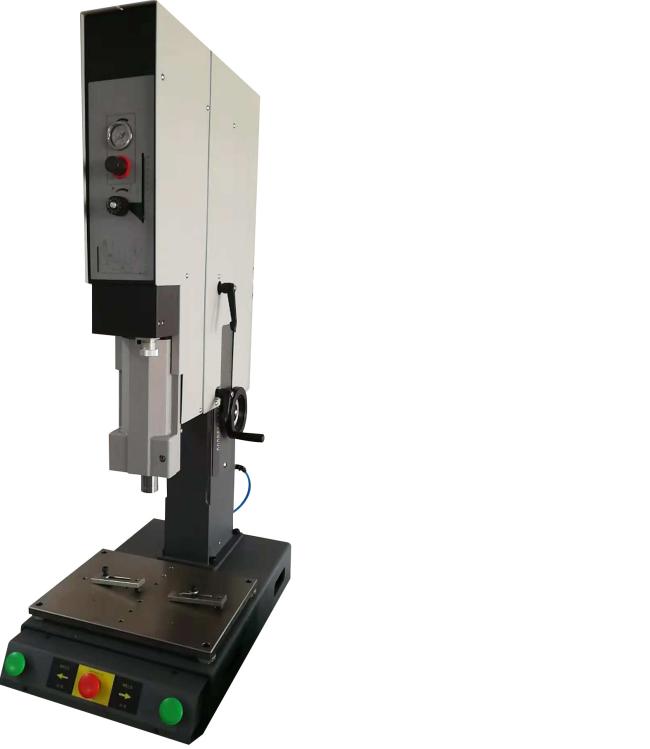

Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry
Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry
Brand New Type
Description:
Ultrasonic plastic welding machine is a high - tech technology for welding thermoplastic products. When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs.
The advantage of ultrasonic plastic welding is to increase productivity, lower cost, improve product quality and safety production. Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded.
Applications:
Medical Industry: Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.
Toy industry: such as toy gun, water gun, telephone and rag baby etc.
Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
Car industry: Car light.
Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.
Competitive Advantage:
High stability
All digital integrated circuit adopts the high-performance
anti-interference processor which is imported from
the United States, improved the reliability and stability
of the system.
Automatic frequency searching
The automatic frequency searching function make it more easy and safe in all kinds of applications.
The output is strong
The application of IGBT power module makes the
output power more than 1.5 times of the traditional
self-excited circuit.
Amplitude stepless adjustment
The amplitude can be instantly increased or decreased
in the adjustment process, it can effectively reduce puncture and scald, and have the monitoring function
of defective products. It is more suitable for automatic matching and the range of setting amplitude is
10%~100%.
Intelligent protection and breakdown alarm
When the equipment breaks down, the generator will stop working immediately and give the fault cause
indication until the problem solved.
Plus size LCD touch screen
Specification:
| Item No | HS-W35A |
| Frequency | 35Khz |
| Output | 1000W |
| Voltage | 110VAC or 220-240VAC |
| Electric Current | 6A |
| Range of Welding Time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Pneumatic Requirement | Clean, dry air at 100pis |
| Maximum Pressure | 1.96KN |
| Maximum Stroke | 75MM |
| Cycle Rate | 80/Min |
| Weight | 90Kgs |
| Dimension of press (mm) | 300(L)*490(W)*1055(H) |
| Dimension of generator (mm) | 280(L)*400(W)*120(H) |

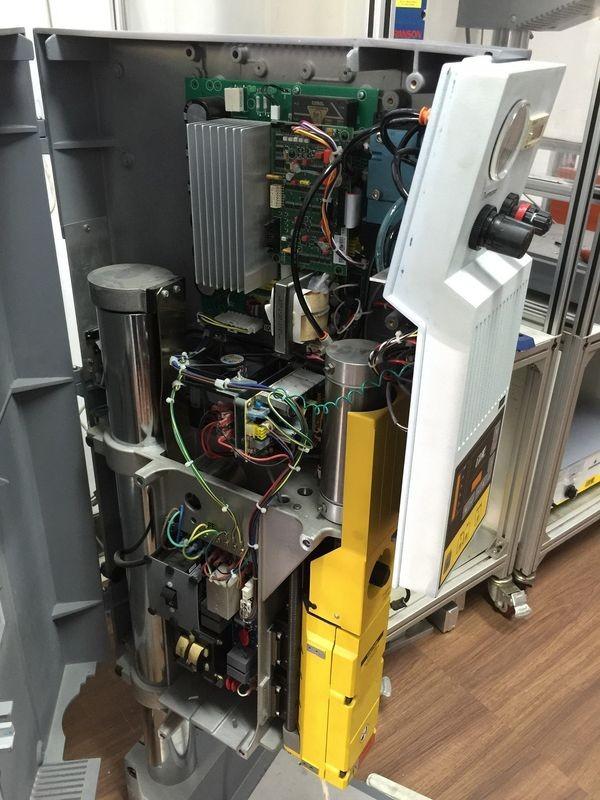

Workshop:
CE Certification:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
