Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install
Price:
usd 25000-40000 per ton
MOQ:
5 tons per SpecificationV
Delivery Time:
5-8 work days
Brand:
KALU
Product Description
Product Detail
ZHANGJIAGANG KALU is manufacturer and supplier of Stone Honeycomb Panel.

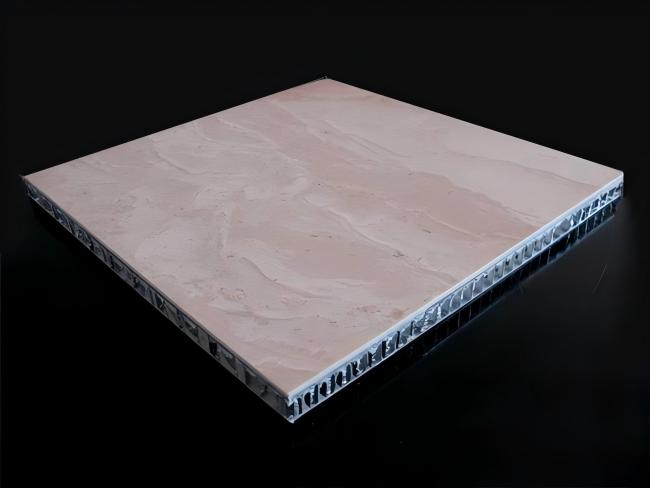

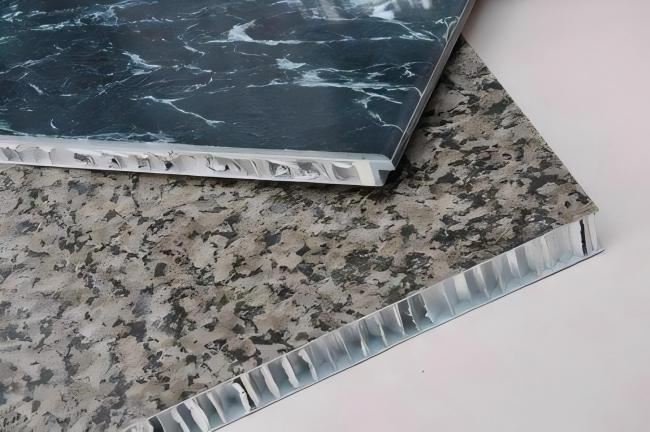

Stone honeycomb panels are innovative architectural materials that combine the natural beauty of stone with the structural efficiency of honeycomb technology. These panels are crafted by adhering thin layers of stone to lightweight honeycomb cores, resulting in a product that is both strong and lightweight. One of the key advantages of stone honeycomb panels is their sustainability. They use less stone compared to traditional stone cladding, reducing the environmental impact of mining and quarrying. Additionally, the honeycomb core provides excellent insulation properties, which can contribute to energy savings in buildings. The panels are available in a wide range of stone types, from granite and marble to slate and limestone, offering architects and designers a diverse palette of textures and colors to choose from. They are also easy to install, with a system that can be mounted directly onto building facades, reducing installation time and costs. Stone honeycomb panels are not only aesthetically pleasing but also offer durability and low maintenance. They are resistant to weathering and do not require frequent replacement, making them a cost-effective choice for both new constructions and renovation projects. In summary, stone honeycomb panels represent a fusion of modern engineering and traditional materials, providing a sustainable, stylish, and practical solution for contemporary architectural design.
If you have demand of Stone Honeycomb panel,please feel free to contact with us, we will reply you within 24 hours.
Specification
| Aluminum foil model | 3003H18,5052H18 |
| Panel Size | 1m x 1m,1220mm x 2440mm,1500 x 3000mm,customized |
| Total Thickness | 6mm-200mm |
| Structure | Face Material+Adhesive Layer + Honeycomb Core + Backing Materia |
Recommended thickness for different scenarios:
| external curtain wall | the thickness of stone is 4-5mm,the thickness of aluminum honeycomb panel is >25mm |
| Internal wall | stone thickness is 3-4mm, honeycomb panel thickness is 15mm |
| Internal ceiling | the thickness of stone is 3-4mm,the thickness of honeycomb panel is 15-20mm |
| Floor panels | stone thickness is 5-8mm, honeycomb panel thickness is 10-15mm |
Edge treatments: include sealing, beveling, or adding a protective trim.
Feature
| 1. | High strength |
| 2. | High resistance to contamination |
| 3. | Sound and moisture insulation |
| 4. | Energy-efficient indoor installation reduces electricity and heat consumption |
| 5. |
Easy to install
|

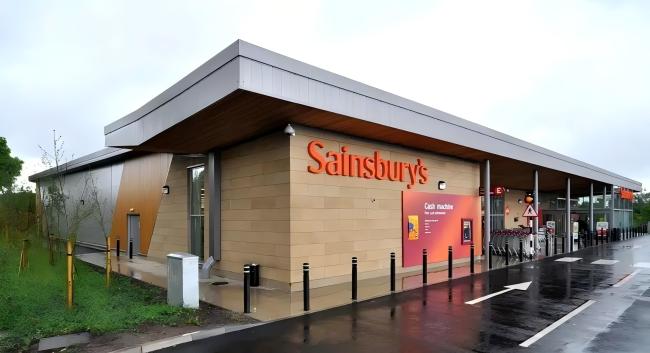

Application
| 1. | Ceiling |
| 2. | curtain wall |
| 3. | interior wall |
| 4. | floor |
| 5. | building |
| 6. | vehicle |
| 7. | ship |
| 8. | other decorative decoration |
Technical Information
Face Material:
| 1)Thickness | 3mm - 8mm |
| 2)Stone Material | granite, marble, slate and limestone |
Honeycomb core
| 1) Hexagonal cells | Alloy series 3003 |
| 2) Diameter in inches | Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4” |
| 3) Foil thickness |
from 50 to 80 microns
|
Backing Material
| 1)Thickness | Customized |
| 2)Material | Aluminum, plastic or any other substrate |
Packaging of Stone Honeycomb Panel
ZHANGJIAGANG KALU Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
| 1) | ZHANGJIAGANG KALU Standard |
| 2) | Customization |
