Application:

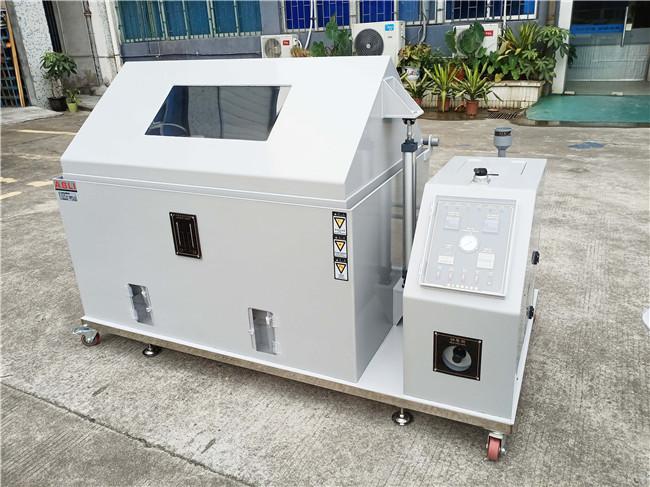

SDH-90 Sulfur Dioxide Salt Spray Test Machine, Sulfur Dioxide Salt Spray Instrument are widely applied to the accelerated corrosive testing of the protective layer from metallic materials, as well as parts, electrical components and industrial products. It can reproduce the corrosion process happened to the painted or untreated metal surface. Therefore it can be used to perform various kinds of corrosion test in according to relevant standards, such as ISO6988-1985.
Sulfur Dioxide Salt Spray Instrument Technical Parameters:
| Model | SDH-60 | SDH-90 | SDH-120 | ||
|
Internal Dimension WxHxD (mm) |
600x450x400 | 900x600x500 | 1200x800x500 | ||
|
External Dimension WxHxD (mm) |
1100x600x1200 | 1400x950x1200 | 1900x1300x1400 | ||
| Lab Temperature | Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃ | ||||
|
Pressure Bucket Temperature |
Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃ | ||||
| Lab Capacity (L) | 110 | 270 | 500 | ||
| Saline Capacity (L) | 15 | 25 | 40 | ||
| Salt concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||
|
Compressed Air Pressure (KGf) |
1.0~6.0 | ||||
| Spray Volume |
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) |
||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||
| Gas Density | 0.1~1% adjustable | ||||
| Gas Generated | Titration/cylinder Method | ||||
| Power | AC220V 1∮3 lines 15A | AC220V 1∮3 lines 15A | AC220V 1∮3 lines 15A | ||
SDH-90 Sulfur Dioxide Salt Spray Test Machine Features:
Anti-corrosive CPVC plate is formed integrally through pressing and with no leakage.The space between tank lid and tank body is water sealed with no air leaking.While the lid, which is made of transparent material, allows you to observe the testing items inside clearly to know the status. It has been equipped with double air filter ensure that the emission gas brings no contamination to environment. Wired control board and other electrical components are positioned in certain places for easy check and maintain.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. SDH-60 Sulfur Dioxide test machine, Sulfur Dioxide salt fog test chamber is our star products , and we had obtained the CE certification for this machine .
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
