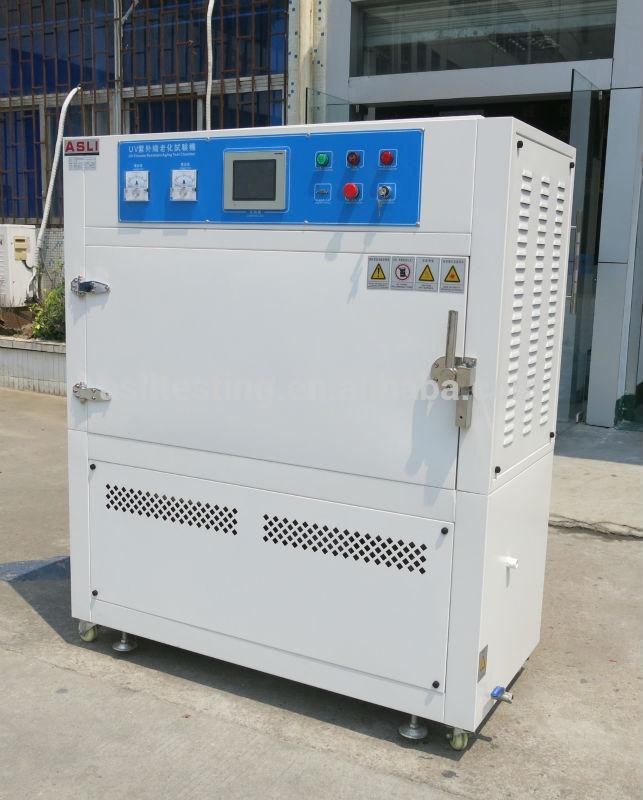

280~400nm UV Simulated Sunlight Aging Testing Chamber with CE Cerfication Design and Construction

UV chamber is equipped with fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It simulates dew and rain with condensing humidity and/or water spray.

280~400nm UV Simulated Sunlight Aging Testing Chamber Controller:

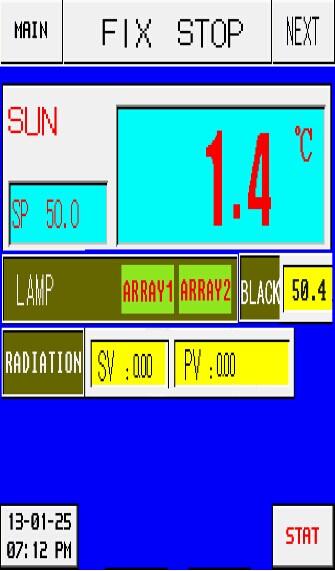

Programmable LCD Touch display controller which control temperature,

humidity, water spraying and irradiance.

Controller shows 10 pieces of UV lamp working time.

UV Chamber Water supply

Automatic water supply, Water purification system, Water saving

Water tank size is 50 Liter.

UV Chamber Sensors

Temperature sensor PT-100 A class

Resolution: ± 0.01 °C

Humidity sensor Dry and wet bulb sensors

Resolution: ± 1%RH

Irradiance Radiometer (UV-SI-260)

UV Chamber UV Lamp

Chamber equipped with 8 pieces of UV lamp, which is air cooling.

1 of UV Lamp Power is 40W,

Lamp length: 1160mm

UV lamp service life is 1600hours.

Over 1600 hours, must change new lamp.

UV Chamber Safety protection

Humidifier dry-combustion protection

Independent over-temperature protection,

Water shortage protection

Over-current protection

Over-current circuit breaker

Earth leakage protection and so on

UV Chamber Power supply and Wiring

220V, 50 Hz 10% +/-

One-phase Three Lines

UV Chamber Technical Parameters
