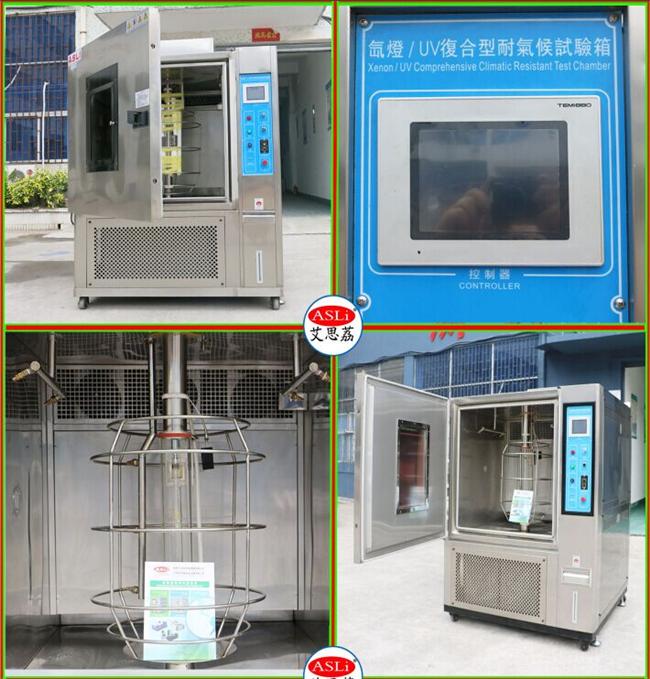

Xenon Arc Lamp Environmental Test Chamber for Weathering Resistance Test
Xenon Arc Lamp Weathering Resistance Test Equipment, Environmental Test Chamber
Application:
Xenon Arc Lamp Weathering Resistance Test Equipment, Environmental Test Chamber is a comprehensive climate testing machine,it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time.Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. Tosimulateand strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.
| Xenon Arc Lamp Testing Chamber Technical Parameters | ||||||
| Model | XL - 1000 | |||||
| Internal Dimension W*H*D (mm) | 1000*1000*1000 | |||||
| External Dimension W*H*D (mm) | 1550*2150*1550 | |||||
| Tube Using Life (H) | 1500 | |||||
| Tube Power | 1KW/6KW | |||||
| Illumination Intensity | 340nm 0.35~0.6w/m2 | Full spectrum 1200±200w/m2 | ||||
| Lighting Filter Type | Inner filter | Quartz | ||||
| Outer filter | Quartz | |||||
| Simulated Test Status | Test samples: E*plore under outer space | |||||
| Cooling System | Water cooled or wind cooled | |||||
| Temperature Control Range of the Test Cabinet | Black panel temperature : BPT 40~120degree C(±3degree C) | |||||
| Black standard temperature :BST 38~120degree C(±3degree C) | ||||||
| Humidity Control Range of the Test Cabinet | Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.) | |||||
| Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) | ||||||
| Rotating Speed of he Samples Holder(RPM) | 1~5 adjustable | |||||
| Diameter of Sample Shelf(mm) | 500±50 | |||||
| Sunlight Exposure Cycle | 0.01~999 hours 59mins | |||||
| Raining Period/ Time | Raining Period:1~240mins,discontinuous-type, adjustable | |||||
| Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa | ||||||
| Spray water flow(L/min) | 1~2.4 | |||||
| Explore Area(cm2) | 7500 | |||||
| Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines | |||||
Environmental Test Chamber Features:
1. Advanced design technology and concept,
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet,
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.
Xenon Arc Lamp Environmental Test Chamber for Weathering Resistance Test
