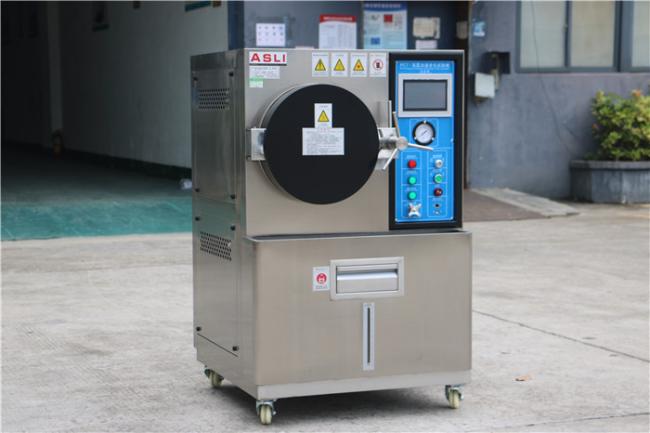

AC 380V HAST Chamber Pressure Tester , Accelerated Weathering Steam Aging Test Machine
Accelerated Weathering Steam Aging Test Machine HAST Chamber Pressure Tester 70~100% RH adjustable
Application:
It is widely applied for the testing of sealing property for multilayer circuit board, IC sealing package, LCD screen, LED, semiconductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Safety Device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.
3. Double overheat protection device: When inner box’s temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.
Features:
1. Automatic water supply.
2. Automatic operation to test process finished, easy to use.
3. LED digital temperature controller
4. LED digital timer, time signal terminal as standard function.
5. Easier Operation with Touch-Screen lnput
6. Accurate pressure: temperature chart always shows the inner box’s pressure and relative humidity.
7. Separate Steam Generator
8. Integrated silic gel door for long life using.
9.The inner box is mirror-polished , easy to clean
Technical Parameters:
|
Model |
HAST - 25 |
HAST - 35 |
HAST - 45 |
HAST - 55 |
HAST - 65 |
|
|
Interior Dimension Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
|
|
Exterior Dimension Φ×D (mm) |
750×1200×800 |
800×1250×800 |
900×1380×900 |
1050×1550×1100 |
1200×1700×1250 |
|
|
Temperature Range of Saturated Steam (Operating temperature) |
(Temperature Range of Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa;133°C 200 Kpa;(143°C is optional) |
|||||
|
Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box) |
|||||
|
Comparison Table of Temperature, Humidity,Pressure of Saturated Steam |
|
|||||
|
Humidity of Saturated Steam |
100%R.H .saturation steam humidity (PCT chamber) 70%~100% R.H. un-saturation steam humidity (HAST chamber) |
|||||
|
Steam Pressure(Absolute Pressure) |
101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm²; (3.0Kg/cm² is optional) |
|||||
|
Recursive Device |
Steam Natural convection circulation |
|||||
|
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
|||||
|
Accessories |
Two layers stainless steel plate |
|||||
|
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
|
|
Power |
AC 220V 50/60HZ ; |
|||||
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory for Accelerated Weathering Steam Aging Test Machine, and any inquiries please feel free to contact us !
