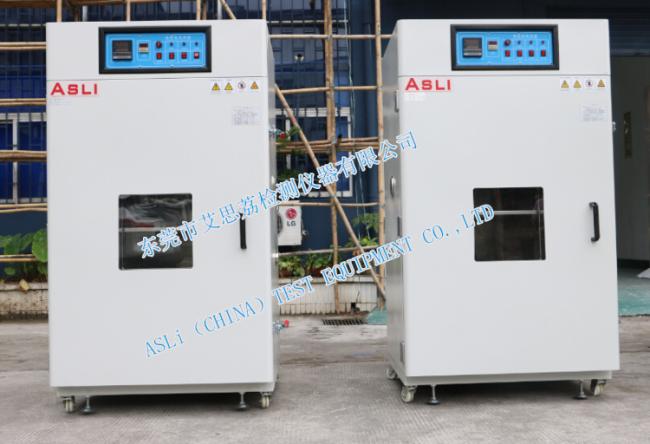

Electronics 500 Degree High Temperature Oven For Dry, Bake And Preheat Various Materials Or Specimen
Good Quality Electronics 500 Degree High Temperature Oven Price
| Model | RHD - 45 | RHD - 60 | RHD - 90 | RHD - 120 |
|
Internal Dimension W×H×D(mm ) |
450×400×400 | 500×600×500 | 600×900×500 | 800×1200×700 |
|
External Dimension W×H×D(mm ) |
650×900×550 | 700×1200×650 | 850× 1600×700 | 1200× 1680×900 |
|
Interior and Exterior Material |
Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
|||
| Temperature Range | R.T. to 200; (300 to 500°C is optional) | |||
|
Indication Resolution/ Distribution Uniformity of Temperature |
0.1°C/±2.0°C;( When temperature is 100°C) | |||
|
Control Accuracy of Temperature |
±0.5°C; | |||
|
Temperature Rising Velocity |
Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins | |||
| Control Method | Micro PID+SSR+Timer | |||
| Storage Shelf | Two layers | |||
| Viewing Window |
When temperature is RT to 200°C ,with viewing widow When temperature is 200°C to 500°C ,without viewing widow |
|||
| Power | AC 220V 50/60HZ ; AC 380V 50/60HZ | |||
Good Quality Electronics 500 Degree High Temperature Oven Price are used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.
Good Quality Electronics 500 Degree High Temperature Oven Price Features:
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
