MJH1500E Wood Cutting Sawmill Fully Automatic Hydraulic Horizontal Band Saw

Price Negotiable

Price: US $41,000 - 51,000 / Set

MOQ: 1 SET

Delivery Time: within 15 days

Brand: SH

Product Description

Heavy Duty Hydraulic Horizontal Band Sawing Machine For Large Wood

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Key features:

Fast return speed & servo controlled blade positioning,
Fast automatic control preventing operator delays,
High speed hydraulic log manoeuvring functions,
Precision made machine with top quality components.

Technical Data:

Model	MJH1200E	MJH1500E
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs

Optional - Log Loading Rack

Optional - Board Roller Conveyor

Related Saw Machines:

Heavy Duty Double Shaft Multi Blades Rip Saw for planks/lumber

Specifications:

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

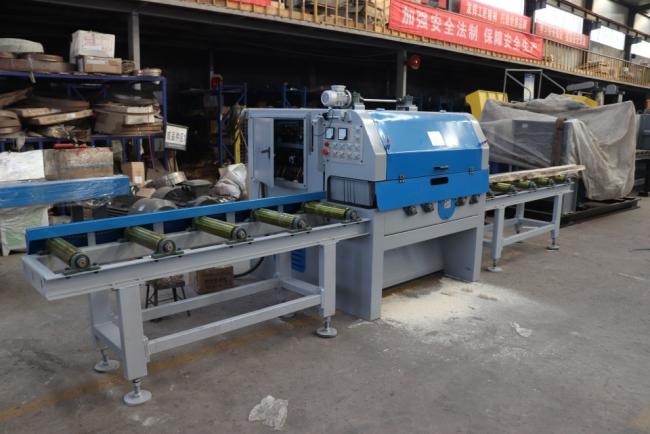

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	230mm	230mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min
