W01-M58-6374 Firestone Indutrial Air Spring SP1B12 Phoenix Air Shock Part


Product Description

Air springs contain a column of air within an elastic bellows or sleeve to provide suspension, isolation or actuation. They are commonly found in vehicle suspension systems, occasionally used in combination with coil springs, and are also used for shock absorption in industrial machinery and equipment.

Reference Number/OEM Number

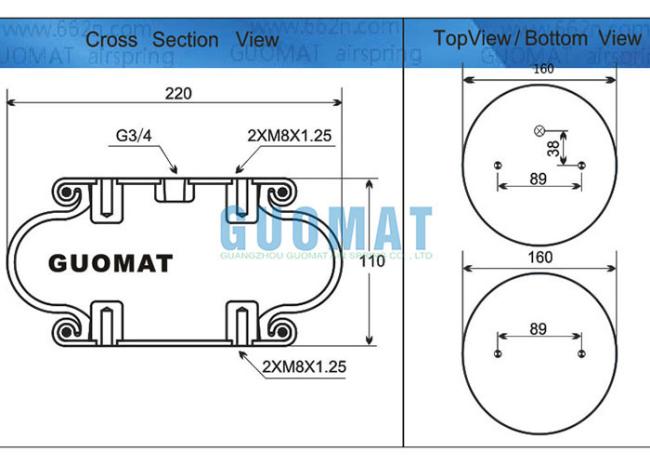

GUOMAT 1B6374 Air Spring Technical Data

• G3/4 Gas hole
• M8X1.25 Threaded hole
• 38mm Distance between air hole and threaded hole
• 89mm Center distance between threaded holes
• 160mm Cover plate diameter
• 220mm Rubber bellow natural outer diameter
• 110mm Natural height

About GUOMAT
GUOMAT produces a wide range of air damping products for use in cars, industrial equipment, trucks or buses. With models of various sizes, we can meet your needs. We have a professional technical production team that uses high-quality materials to manufacture according to the original factory dimensions. It can completely replace the original factory model and improve the cost performance. At the same time, we provide a 1-year warranty. If you have any problems during use, you can contact us at any time.

Industrial Air Spring Composition

• Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
• Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
• Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
• Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
• Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
