ASTM D1709 Plastics Film And Sheeting Impact Resistance Testing Equipment With PLC Control
ASTM D1709 Plastics Film And Sheeting Impact Resistance Testing Equipment With PLC Control
Overview

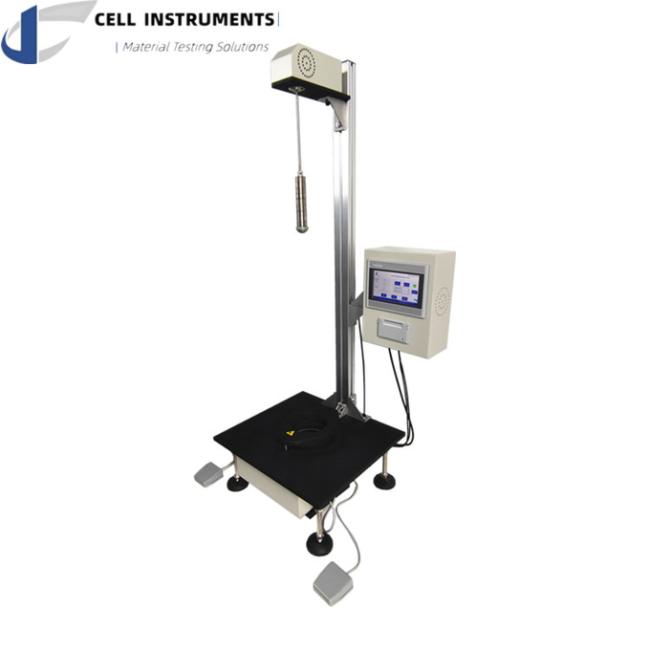

Introducing the Falling Ball Impact Tester, a state-of-the-art solution designed to measure the impact resistance of plastic films, sheets, composite films, foils, and paper with thicknesses under 1mm. This advanced tester, adhering to ASTM D1709 standards, provides essential insights into the durability and impact resistance of your materials, helping you mitigate transportation risks and improve product quality.
Key Features of the Falling Ball Impact Tester
-
PLC Control and Touch Screen Operation: The Falling Ball Impact Tester features a user-friendly PLC control system and a touch screen interface, ensuring precise control and effortless operation.
-
Two Test Methods (A and B): Choose between Method A and Method B to accommodate various testing needs and enhance the versatility of your impact testing.
-
Multi-Unit Display: View test results in multiple units for easy interpretation and comprehensive analysis.
-
Electromagnetic Suspension and Automatic Dart Release: The tester’s electromagnetic suspension system ensures consistent testing conditions by automatically releasing the falling ball from a fixed position.
-
Pneumatic Clamping System: Secure and precise sample positioning is achieved with the pneumatic clamping mechanism, improving the accuracy and repeatability of each test.
-
Manual and Foot Switch Control Options: Enjoy flexible testing with manual and foot switch controls, catering to different operational preferences.
-
Micro-Printer for Data Export: Quickly document and analyze test results with the integrated micro-printer, streamlining data management and reporting.
-
Optional Professional Software: Upgrade your testing capabilities with optional professional software for advanced data analysis and detailed reporting.
Benefits of Using the Falling Ball Impact Tester
Accurate Impact Resistance Testing: The Falling Ball Impact Tester accurately simulates real-world impact scenarios, helping you assess the performance of your plastic films and sheets under controlled conditions.
Improved Quality Assurance: By evaluating the impact strength of your materials, you can identify potential weaknesses and make necessary adjustments to enhance film durability. This proactive approach can lead to significant cost savings by reducing the frequency of product failures during transit.
Enhanced Production Consistency: Regular testing with the Falling Ball Impact Tester provides valuable data for quality control, ensuring consistency and reliability in your production process.
Optimized Film Formulation: Understanding your material’s impact resistance allows for better formulation and design choices, ultimately improving the marketability and reliability of your products.
Compliance with Industry Standards: The tester adheres to key industry standards, including ASTM D1709, ISO 7765-1-1988, JIS K7124-1, and GB/T 9639.1-2008, ensuring that your testing processes meet rigorous quality benchmarks.
Technical Specifications
| Test Method Method | A or Method B (optional) |
| Test Range | Method A: 50~2000g/ Method B: 300~2000g |
| Dart Diameter | Method A: 38±1mm Method B: 50±1mm |
| Impact Height | 660mm/1500mm |
| Accuracy | 0.1g (0.1J) |
| Clamp | Pneumatic Clamp |
| Gas Supply | 0.6 MPa Φ8 mm PU Tubing |
| Specimen Size | > 150 mm x 150 mm |
| Power Supply | AC 110~220V 50Hz |
| Dimension | Method A: 500*450*1200 mm (LWH) Method B: 500*450*2200 mm (LWH) |
