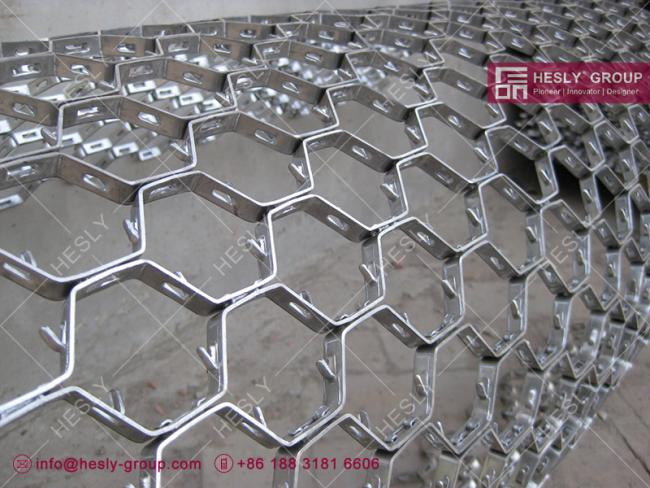

AISI321 Hex Steel mesh for refractory lining | 1" depth | 16 gauge thickness | 36"X100' | 2" hexagonal hole
Price:
negotiated as per the order
MOQ:
1 ㎡
Delivery Time:
according to the order (in stock)
Brand:
HESLY
Product Description
AISI321 Hex Steel mesh for refractory lining | 1" depth
HESLY hex steel & hexmesh your best choice for Anchoring & Reinforcement for Refractories and Concrete Flooring !!!
DESCRIPTION OF HESLY HEX STEEL
Hex Steel is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hex Steel's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.
 |
 |
|
| Standard Bonding Hole Pattern | Lance Pattern | |
 |
 |
USES FOR HESLY HEX STEEL
Refractory Linings in Furnaces | Ducts and Flue Gas Lines | Cyclones | Reactors | Reactor Vessels | Windboxes | Fan Casings | Regenerators | Tanks | Ashpits | Heaters
INDUSTRIES OF HESLY HEX STEEL
Air Distributors | All Plants where the Practicality of Free Rolling Material is Beneficial to Maintenance Activities | Power Plants Cement Plants | Steel Plants | Petroleum Sector | Chemical Industry
HESLY Hex-Mesh Typical Service Temperature:
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
HESLY Hex Steel ordinary specs:
| HESLY-hexsteel ordinary specifications (E-ON refractory) | |||||
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
Hexsteel Photo Showcase
 |
 |
| Hex Steel Refractory Lining | Hex Steel China Exporter |
 |
 |
| Double Clench Hex Steel | Offset Lances Hex Steel |
 |
 |

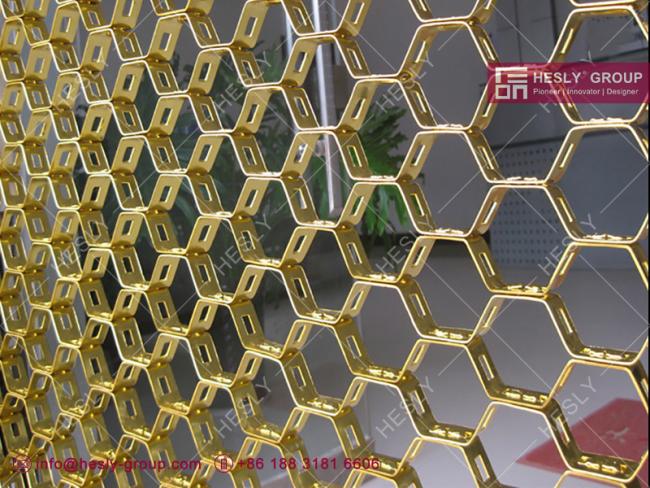

| Brass Hexmetal | Brass Hexmesh China Factory |
Package and Delivery
 |
 |
| China Hexmesh Factory | China Hexmetal Exporter |
 |
|
| HESLY CHINA HEXMESH & ANCHORS FACTORY | |
 |
