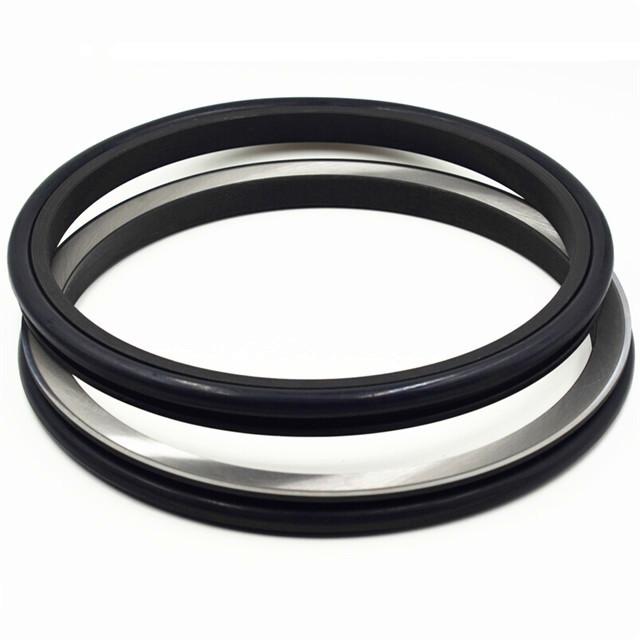

9G-5343 Duo Cone Seal / Excavator Oil Shaft Seal Replacement
9G-5343 Duo Cone Seal / Excavator Oil Shaft Seal Replacement
- Duo Cone Seal is also called floating seal, seal group, Duo cone seal, mechanical face seal, lifetime seal
- the outer diameter of floating seal is from 35mm-1,000mm.
- The hardness is HRC58-62 , the working face precision within 0.015um.
- Flatness up to 0.1um-0.2um ,the lifetime is more than 4,000HRS.
- The metal rings
| Surface finish / Roughness | ≤ Ra0.2μm |
| Face finish | ≤ Ra0.015μm |
| Pressure | ≤ 0.3MPa |
| Forged/Casting line speed | 2m / s & 3m / s |
| Hardness | 58 - 62 HRC |
| Temperature | -100 ~ 200 °C |
- The rubber o ring
| Shore hardness | 60 ° ~ 65 ° |
| Minimum tensile strength | 11MPa |
| Minimum elongation at break | 300% |
| Flexible change | ± 5 ° |
| permanent deformation | ≤ 12% |
The advantages of our Duo Cone Seal
1. Coexistence of high quality and competitive prices
2. Long service life
3. Easy to install
4. High yield
5. Good performance
Method of installation Duo Cone Seal :
1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.
OEM covers
| Model | OEM Codes |
| Komatsu |
195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121, 140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010... |
| Kobelco |
R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25, R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28... |
| 1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201... | |
| Hitachi |
4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110, 4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64... |
