Waterproof IP68 LED Miners Cap Lamp , Super Bright Rechargeable Led Headlamp
Rechargeable Underground LED Coal Mining Lights High Brightness Waterproof IP68
Function of GL12-A 25000Lux mining lamp:
1. Advocate the lamp two levels of light
2. Low electric automatic reminders
3. SOS mode
4. Support 2A charging time.
5. Drop resistance: Military engineering plastic shell.
Main Features for Model GL12-A miner headlamp with cable:
1. Brightness: 25000lux high beam headlamp with cable.
2. Portable: lightweight 490g and big battery capacity 10.4Ah
3. Fast charging: 2A charger, charging time less than 8hours
4. Better lighting spot: adopt aluminum lighting cup.
5. SOS for low power warning function for safety headlamp.
6. Special material with flame-resistant, impact-resistant. ATEX explosion-proof, Dust-proof.
7. Environmental: Lithium battery with short circuit protection, overcharging protection and over-discharging, free maintain long battery life span.
8. OEM and ODM are available. Write the request to cap lamps, such as clients company name, LOGO, series No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
10. Quality is our culture. We will be responsible for you if any quality problem and warranty time is one year.
Main parameter of rechargeable led headlamp:
| Specification | GL12-A | ||||||
| Light sources | One main light and two auxiliary lights | ||||||
| Rated voltage | 3.7V | ||||||
| Battery capacity | 10.4Ah | ||||||
| Main light current(strong light) | 850mA | ||||||
| Main light current (working light) | 450mA | ||||||
| Power of the main light(strong light) | 3W | ||||||
| Power of the main light(working light) | 1.8W | ||||||
| luminous(strong light) | 348Lum | ||||||
| luminous(working light) | 240Lum | ||||||
| The brightness of the main light(strong light) | 25,000Lux | ||||||
| The brightness of the main light(strong light) | 15,000Lux | ||||||
| LED lifespan | 10,000hours | ||||||
| Battery cycles | 1200cycles | ||||||
| Charging time | 7.5hours | ||||||
| Cable length | 1.2m or 1.6m can be customized | ||||||
| Weight | 490g | ||||||
| Water-proof grade | IP68 | ||||||
| Light switch | light touch switch | ||||||
| Certified | CE&ATEX, ROHS |

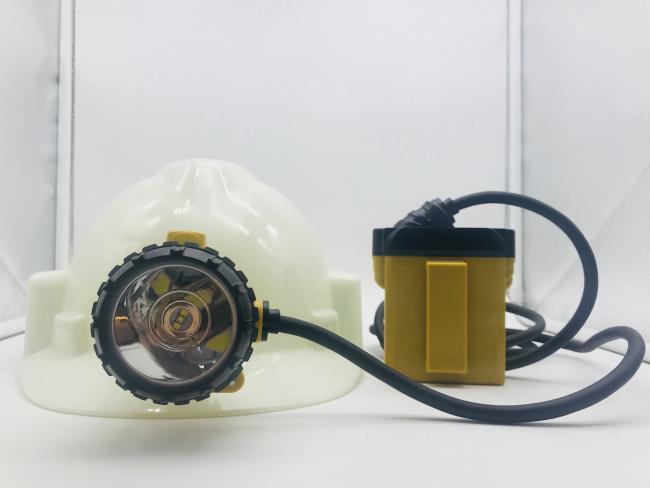

Details of GL12-A corded underground mining lights as below:
- Push microswitch
- long time usage and good touch
- Adjustable stainless steel head clip
- convenient for changing the light angle and relax the neck
- 4 levels of lighting mode:
- work-strong-auxiliary-SOS
- 25000lux high brightest
- 2A charger for fast charging
- Spare parts :
- Cree LEDs + Samsung battery + strong PC material + Toughened glass
- Production
- Application: Underground Mines/tunnels, railway, outdoor adventure
- About us Green Lighting Electronics
We are dedicated to led underground mine lights since 2006.
We have an engineer of appearance, function, new design, drawing.
Strict Controlled quality from raw material to finished products.
OEM/ODM Service.
Trial Order available.
Customization service according to customers' feedback and requirement.
We have long term cooperations with South Africa and Canada customers (who can plant a tracking system to cap lamp).
The high safety cap lamp is a trend.
We are researching and developing RFID/NFC to plant into a cap lamp to real-time tracking.
Welcome to our factory to visit.
VISION:
Our vision is to consistently satisfy our customer requirements and other diversified services to maintain a long term business relationship by prompt deliveries of high-quality LED mining lights, charging rack, explosion-proof flashlight, LED light strips and related accessories.
MISSION:
To be the pioneer in the LED mining headlamp of the underground mines sector by assuring our esteemed clients' dedicated service and continuous support.
