4201812 Cable Control HITACHI Excavator Parts For EX150 EX200 EX200K RX2000
- 4201812 Cable Control HITACHI Excavator Parts Fit For EX150 EX200 EX200K RX2000
- Specifiion
| Appliion | HITACHI excavator |
| Name | Cable Control |
| Parts No | 4201812 |
| Machine Model | EX150 EX200 EX200K RX2000 |
| egory | HITACHI spare parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR EX150 EX200 EX200K RX2000 Hitachi
- More other cable control fit for HITACHI machine
| 4248908 CABLE |
| EX100, EX100M, EX100W, EX100WD, EX120, EX150, EX160WD, EX200, EX200K, EX220, EX270, EX300, EX60, EX60G, EX700, EX90, RX2000 |
| 4214870 CABLE;CONTROL |
| EX150 |
| 9829322110 CABLE; STARTER EARTH |
| 225CL RTS JD, 270C LC JD, CG45, EG70R-3, EX100W, EX100WD, EX125WD-5, EX160WD, EX200, EX200-2, EX200-3, EX200-3C, EX200-3E, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN |
| 9829315110 CABLE; STARTER EARTH |
| 135C RTS JD, BX70, BX70D, CP215, EG40R, EX100, EX100-2, EX100-3, EX100-3C, EX100-5, EX100-5 JPN, EX100M, EX100M-2, EX100M-3, EX100M-5, EX100WD-2, EX100WD-3, EX100WD-3C, EX120, EX120-2, EX120-3 |
| 4226020 CABLE;CONTROL |
| EX150 |
| 4164135 CABLE;CONTROL |
| EX200, EX300, UH143 |
| 4216837 CABLE;SHIELD |
| RX2000 |
| 1828490430 CABLE; ENG STOP ACTUATOR |
| BX70, BX70D, EX200K, EX200K-2, EX200K-3 |
| 4054012 CABLE;CONTROL |
| UH143 |
| 4046575 CABLE |
| UH801 |
| 336121-22130 CABLE |
| LX30 |
| 0831701 CABLE |
| EX2500-6, EX2600-6BH, EX2600-6LD, EX3600-6, EX3600E-6, EX5600-6BH, EX5600-6LD, EX8000, EX8000-6, HX120B, HX120B-2, HX140B, HX99B-2 |
| YD00000871 CABLE;BATTERY |
| ZX30U-5A, ZX35U-5A |
| RE58614 CABLE |
| LX100-5, LX120-5, LX150-5, LX230-5 |
| 4411646 CABLE;CONTROL |
| EX75UR-3 |
| 4368873 CABLE;CONTROL |
| 218HSL, CX500PD, CX500W, CX500W-C, CX700, CX700 JPN, CX700HD, CX900, CX900-2, CX900HD, MH5510B, SCX1200-2, SCX1500-2, SCX500W, SCX700HD, SCX900, SCX900-2, SCX900HD, SCX900HD-C |
| 4368713 CABLE;CONTROL |
| EX100-3, EX100M-3, EX100WD-3, EX100WD-3C, EX120-3, EX120-3C, EX200-3, EX200-3C, EX60LCT-3, EX60WD-2 |
| 4321677 CABLE |
| EX60LCT-3, EX60T-2 |
| 4304125 CABLE(BATTERY(+) - BATTERY RELAY) |
| EX40UR |
| 4233408 CABLE |
| LX20 |

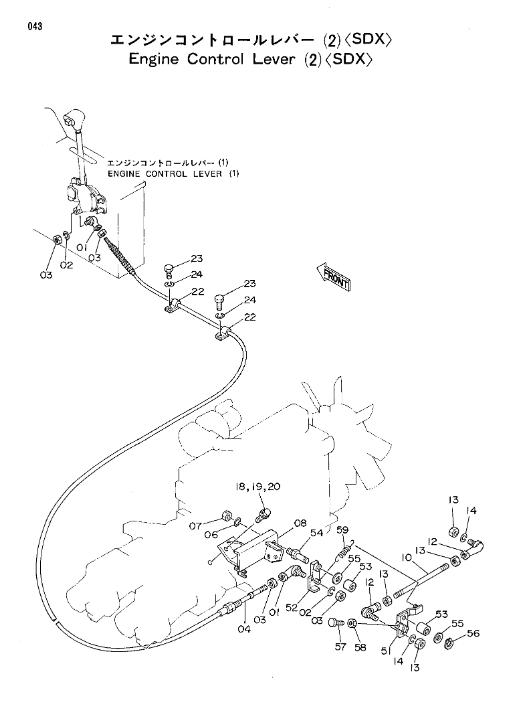

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4056016 | [2] | JOINT;BALL | |
| 2 | A590905 | [2] | WASHER;SPRING | |
| 3 | M500504 | [4] | NUT | |
| 4 | 4201812 | [1] | CABLE;CONTROL | |
| 6 | A590914 | [1] | WASHER;SPRING | |
| 7 | J952014 | [1] | NUT | |
| 8 | 7018281 | [1] | BRACKET | |
| 10 | 4202990 | [1] | ROD | |
| 12 | 4056017 | [2] | JOINT;BALL | |
| 13 | M500605 | [4] | NUT | |
| 14 | A590906 | [2] | WASHER;SPRING | |
| 18 | A590110 | [2] | WASHER | |
| 19 | A590910 | [2] | WASHER;SPRING | |
| 20 | J021025 | [2] | BOLT;SEMS | |
| 20 | J901025 | [2] | BOLT | I J021025 |
| 22 | 4190276 | [2] | CLIP | |
| 23 | J901018 | [2] | BOLT | |
| 24 | A590910 | [2] | WASHER;SPRING | |
| 51 | 7018259 | [1] | LEVER | |
| 52 | 8038497 | [1] | LEVER | |
| 53 | 4173387 | [2] | BUSHING | |
| 54 | 4188374 | [1] | PIN | |
| 55 | A590114 | [2] | WASHER | |
| 56 | 991337 | [1] | RING;RETAINING | |
| 57 | 4188376 | [2] | ADJUSTER | |
| 58 | 4122395 | [2] | NUT | |
| 59 | 4188375 | [1] | SPRING;TENSION | |
| 59 | 4216154 | [1] | SPRING;TENSION |
