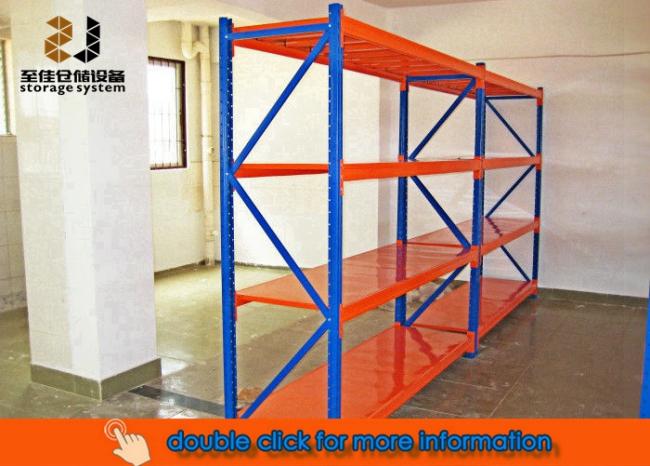

Multi-Level Steel Shelving Unit Epoxy Powder Coated Corrosion Protection
Multi-Level Epoxy Powder Coated Corrosion Protection Steel Shelving Unit
Description:
Steel Shelving Unit consists of upright frame, beam, pallet support and other standard components.H-bracing and D-bracing connect with upright part by self-lock bolts; can effectively prevent racking from losing balance caused by the release of bolts.
Our warehouse pallet storage rack is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.
Specification:
| Product name |
Multi-Level Epoxy Powder Coated Corrosion Protection Steel Shelving Unit |
| Features |
Pallets can be located, accessed and moved individually. Rapid handling of almost all types of pallet goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Standards Size | Layers | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
| L2000*D600*H2000mm | 4 | 200~300kg/layer | 60*40*1.0 | 60*40*1.0 | 0.4 |
| L2000*D600*H2000mm | 4 | 400~500kg/layer | 80*40*1.2 | 55*45*1.5 | 0.7 |
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
