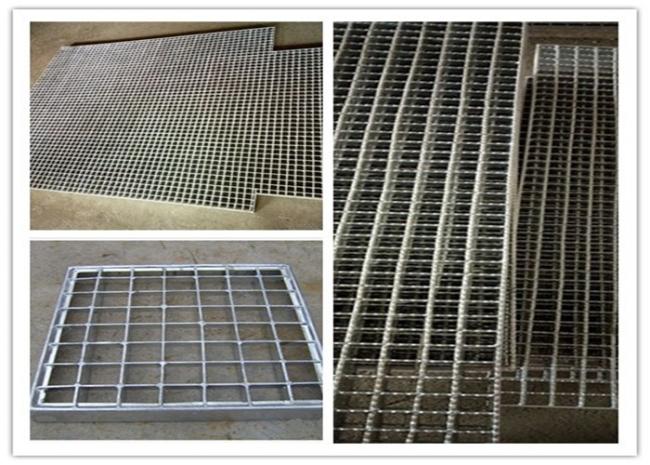

Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding
Floor Press Locked Metal Grid Hot Galvanized Anti - Sliding Grating
The press locked welded steel grating,requested by the customers,is made of load flat steel bar,placed horizontally and vertically,and at an equal pitch apart,by welding with 200-ton hydraulic resistance automatic welding equipment,then cutting,punching and banding ends.
| Product Name | Steel grating |
| Material | Low carbon steel / Stainless steel |
| Grade | CN: Q235, Q345, USA: A36, UK: 43A |
| Standard | CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, USA: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |
Quality standard
| Standard for steel grid | Standard for steel material | Standard for hot dipped galvanization | |
| China | YB / T4001.1 - 2007 | GB700 - 88 | GB / T 13912 - 2002 |
| USA | ASNI / NAAMM ( MBG531 - 88 ) | ASTM ( A36 ) | ASTM ( A123 ) |
| UK | BS4592 - 1 - 1995 | BS4360 ( 43A ) | BS729 |
| Australia | AS1657 - 1992 | AS3679 | AS1650 |
Our company
We have nearly 18 years of experience in manufacturing High quality Steel Grating with various sizes,We can supply plain Type-s, Type-I, cross or composite grating according to customers’ requirements.The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.
We warmly welcome friends from all corners of the world both at home and abroad to patronize us ,
We wish us cooperate successfully and create the brilliant future together!
Characteristics of the products
1 High strength and light structure
2 Powerful anti-corrosion, durable and long workiing life
3 Beautiful appearance ,bright surface
4 No dirt-rain-snow deposit ,antomatic cleaning ,easy maintenance
5 Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6 Easy installation and disassembly
