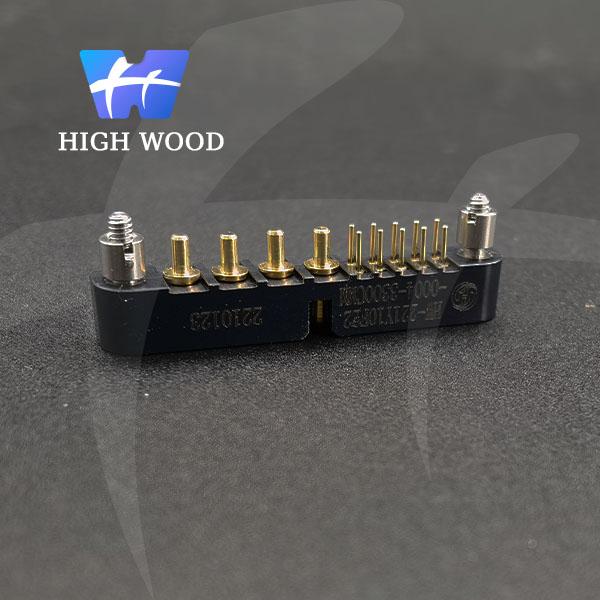

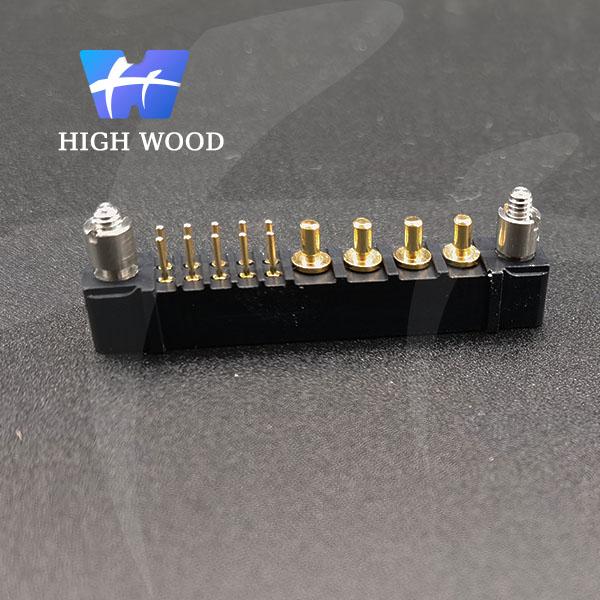

HW-CMM Connectors, HW-221Y10F22-0004-3300cmm
HW-CMM Connectoc, HW-221Y10F22-0004-3300cmm
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.

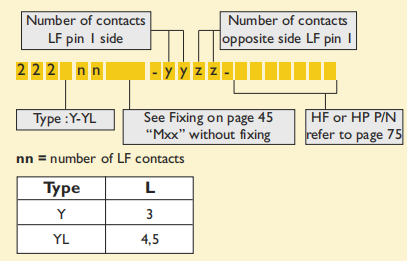

How to order.
|
CMM RANGE
|
USE
|
|||||||||||||
|
STRAIGHT ON PCB
|
90° ON PCB
|
STRAIGHT SMT
|
90° SMT
|
CRIMP
|
||||||||||
| 1000/200 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
|
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
|
220
|
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
|
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
| 320 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
|
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||||
| 340 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
|
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||||
Product showing.
