1R1G1B Big Advertising Led Display Screen P10 Full Color High Refresh Rate
Big Advertising Led Display Screen , High Refresh Rate Led Video Screen Rental
Product Features
1, High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
2, SMD technology could guarantee higher flatness and better performance.
3, Super performance/cost ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
4, Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.
5.,Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
Application:
Widely used in Advertising media, Concert, TV SHOW, Super mall, Entertainment, School, Government, Trading conversation, Commodity fair, Exhibition, Cinema, News conferences, Meeting room, Airport, Hotel, Station Hall and other Public Places.
Technical specification
| ※Specifications of the module | |||
| Technical parameters | UNIT | parameters values | |
| Pixel pitch | MM | 10 | |
| Panel size | MM | L320*H160*T13 | |
| Physical density | /M2 | 10000 | |
| Pixel configuration | R/G/B | 1,1,1 | |
| Brightness | CD | 2000 | |
| Driving method | Constant current 1/8scan | ||
| LED Encapsulation | SMD | 3528 | |
| Display resolution | DOTS | 32X16=512 | |
| Module weight | KG | 0.22 | |
| Module port | HUB75 | ||
| Module working voltage | VDC | 5 | |
| Module consumption | W | 18 | |
| ※Specifications of LED cabinet | |||
| Viewing angle | Deg. | 120° | |
| Weight | KG | 35 | |
| Option distance | M | 10-110 | |
| Driving device | 2026/5020 | ||
| Every square metre module | PCS | 19.53125 | |
| Maximum power | W/ M2 | 350 | |
| Frame Frequency | HZ/S | ≥60 | |
| Refresh frequency | HZ/S | ≥600 | |
| Equilibrium brightness | CD/ M2 | ≥1800 | |
| Working environment temperature | 0C | -10~60 | |
| Working environment humidity | RH | 10%～70% | |
| Display working voltage | VAC | AC46～54HZ,220V±15%/110V±15% | |
| Colour temperature | 8500K-11500K | ||
| Gray scale/color | ≥16.7M color | ||
| Input signal | RF S-Video RGB etc | ||
| Control system | PCTV nonlinearity card,DVI display card,Linsn control system | ||
| Mean free error time | HOURS | ＞5000 | |
| Life | HOURS | 100000 | |
| Lamp failure frequency | ＜0.0001 | ||
| Antijam | IEC801 | ||
| Safety | GB4793 | ||
| Resist the electricity | 1500V last 1min No breakdown | ||
| Steel box weight | KG/ M2 | 38(standard steel box) | |
| Earth leakage current | mA | ||
| IP rating | The back IP40,The front IP50 | ||
| Steel box size | mm | L960Xh960x80 | |
Packing List
A, Wooden case, 4pcs cabinets/case,
B, Cables
C, Modules
D, LED Lamps

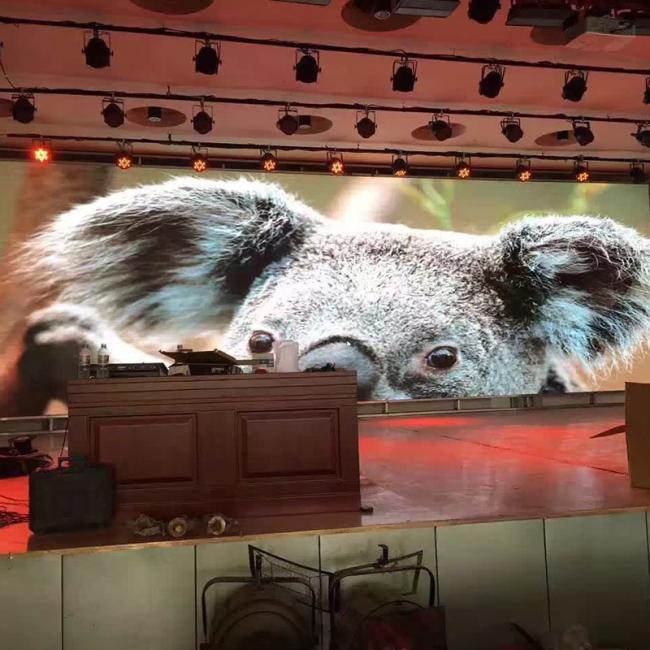

Project Cases
