Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft
Eaton Charlynn 113-1163-006 replacement, 500cc with wheel mount, 1:8 45mm Tapper Shaft
Quick review:
BMK6-500-W-T1-SF5 = Eaton Char lynn 113-1163-006
Output volume (cc/rev): 500

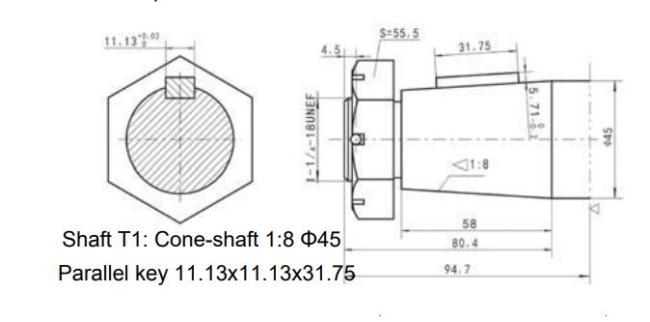

Shaft Ø (mm): 1:8 45mm Tapper Shaft
max r.p.m.: 455
Torque max. (Nm): 1880
Pressure difference (bar): 300
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard

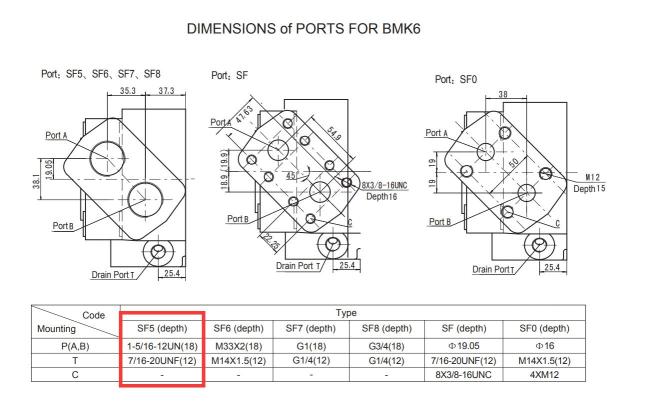

Connection: 1 5/16-12UN
Leakage oil connection: 7/16-20UNF
Main specifiction:
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |

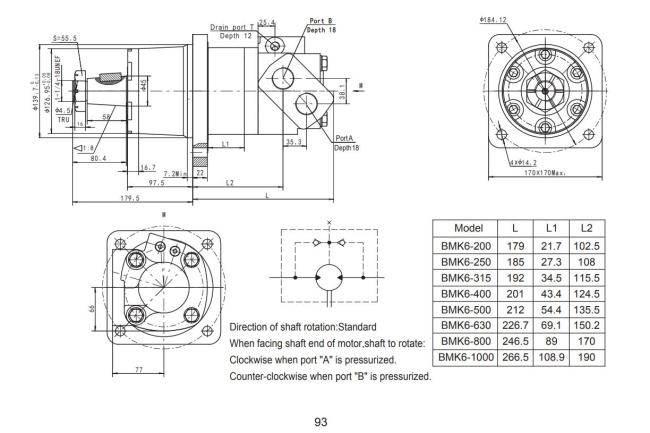

Measurement:

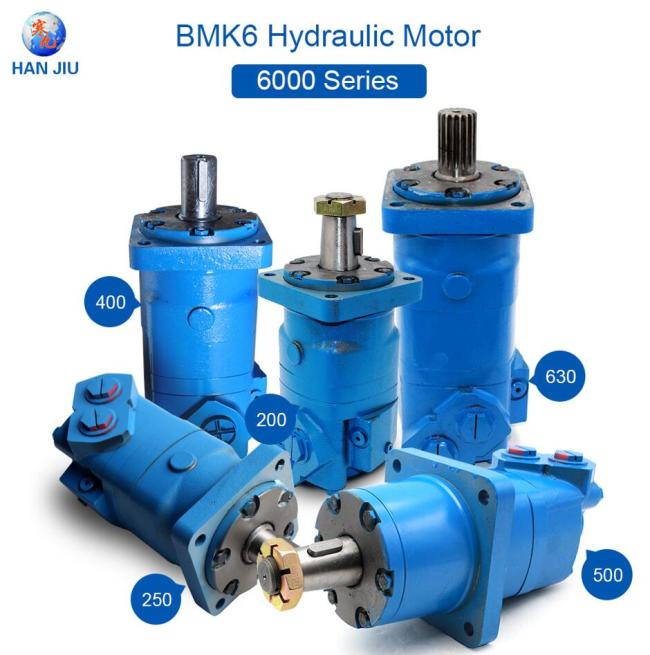

More BMK6 hydraulic motor available to compatibel with Eaton Charlynn 6000 (112-, 113-, 114-):
| 112-1064 | 112-1065 | 112-1066 | 112-1067 | 112-1068 | 112-1107 | 112-1145 |
| 112-1094 | 112-1095 | 112-1096 | 112-1097 | 112-1098 | 112-1099 | 112-1069 |
| 112-1058 | 112-1059 | 112-1060 | 112-1061 | 112-1062 | 112-1109 | 112-1163 |
| 112-1088 | 112-1089 | 112-1090 | 112-1091 | 112-1092 | 112-1093 | 112-1063 |
| 113-1082 | 113-1083 | 113-1084 | 113-1085 | 113-1086 | 113-1100 | 113-1087 |
| 113-1070 | 113-1071 | 113-1072 | 113-1073 | 113-1074 | 113-1093 | 113-1075 |
| 114-1031 | 114-1032 | 114-1033 | 114-1034 | 114-1035 | 114-1055 | 114-1036 |
| 114-1043 | 114-1044 | 114-1045 | 114-1046 | 114-1047 | 114-1048 |
More Char-lynn version hydraulic motors available:
