ISO 5676 Zinc Plated Steel Agricultural Quick Couplings
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
Applications in Trailer brake circuits on agricultural and forestry Vehicles Agricultural Quick couplings
Applications
Trailer brake circuits on agricultural and forestry vehicles
CB-8 Series couplings have nominal diameters no greater than 25 mm. they are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Standard Materials
- Zinc-plated steel
- Seals: NBR, Viton, EPDM
Features
- Double shut-off couplings
- Pull-to-connect couplings
- Ball-locking
- Meets the requirements of ISO 5676 and NFU16-006
- Minimum entry of air and loss of fluid
- Dust caps and plugs
- Compatible with HANSEN Q9000 Series.

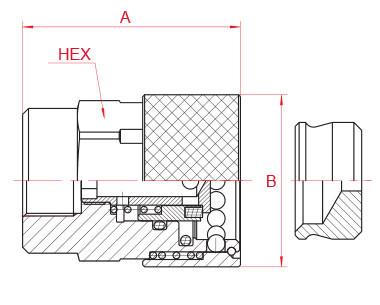

| DN (mm) | PARTNO. | Thread | A | B | Hex |
| 8 | CB-S1S-8F-C | M18*150 | 55,5 | 44 | 38 |

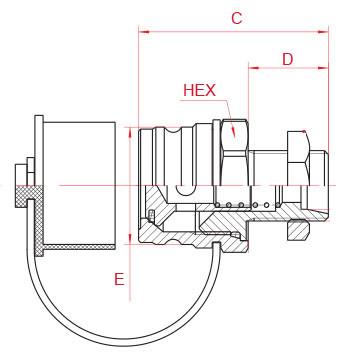

| DN (mm) | PARTNO. | Thread | C | D | E | Hex |
| 8 | CB-P1S-8M-C | M18*150 | 50,5 | 22,5 | 30 | 32 |
| 8 | CB-P2S-8M-C | M20*150 | 50,5 | 22,5 | 30 | 32 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
