Easy Installation Plastic Union Threaded Screw Connector for Rigid PTFE Tube

Fittings are a crucial component in setting up your fluid handling system with no leaks, flow restrictions or costly downtime. Our extensive selection includes barbed fittings for flexible tubing, threaded fittings for rigid tubing, quick-connect couplings, luer adapters and many other fittings. Fittings and adapters are available in sizing to connect anything from microbore tubing up to large pipes and in a variety of materials such as low-cost polypropylene (PP) for general applications to PTFE and PFA for corrosive media.

Product Function

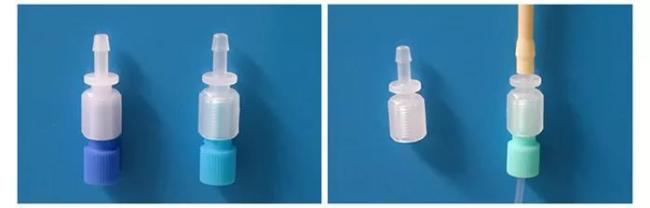

Straight Barb-to-Female Adapters are used to navigate tight corners for flexible tubing transited to rigid tubing. One end is for connecting flexible tubing ID0.8-3.2mm, another end is for connecting flanged or flangeless fittings for rigid tubing.

Specification

Dimension (unit: mm)

Application Note

1. Straight thread to barbed adapters need to match with male fittings of same thread type.

2. One-Piece Fittings Installation Steps:

a. Prepare 1 pieces same male thread type flanged or flangeless fittings with tubing assembly

b. Insert the assembly into the receiving ports, pushing the tubing into the port until it bottoms out.

d. Finger tighten the nut into the port until snug.

e. After several uses (especially at high pressure) the ferrule or flanged tube should be replaced.

f. Connect the flexible tubing into the barbed end
