0 ~ 10 Bar Engine Oil Pressure Sensor For Diesel Trucks / Marine / Boat

Product Description

We supply the engine oil pressure sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure. This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. The engine oil pressure sensor can also be used to measure the pressure for liquid, gas and steam.

Application

Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.

Technical Data


• Conducting power: < 5W
• Operating temperature: -40 ~125℃
• Measuring range: 0 ~ 10 Bar
• Alarm: 0.8 Bar
• Output signal: 10~184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M12X1.5 or customized as requires.
• Protection rank: IP66


Feature

Oil Pressure Sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to Hex nut and tighten the thread. The maximum tightening torque is 17N.m.

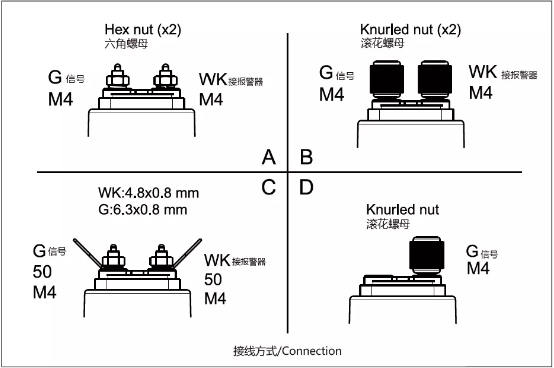

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

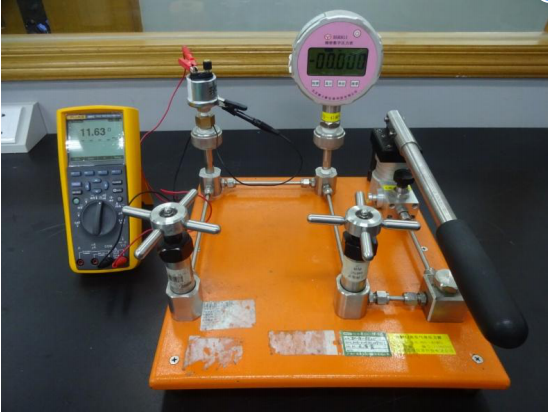

                                            Basic Function Test

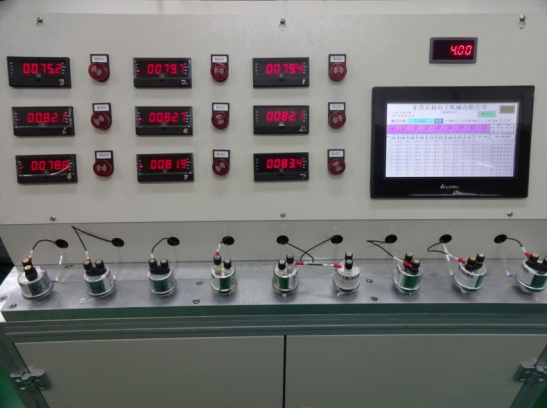

                                                             Life Test

                                                 Vibration Test

                                               Vibration Test Parameters

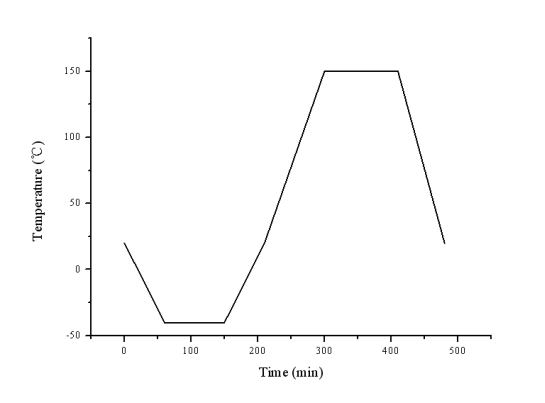

                                           Temperature Cycling Parameters

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.
B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Q & A



Company Introduction

Wuhan Chidian Technology Co., Ltd is a professional manufacturer specializing in automotive sensor, located in the beautiful Wuhan Eco-Tech Development Zone. Mainly engaged in R&D, production and sale of automotive pressure sensors. We have first-class technical team, with strong R & D capability and rich experience in production management. In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability. Our product quality has won user community's good reputation.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers. Our mission is to be the most valuable and competitive automotive pressure sensor in the world.
