Engine Accessory Automotive Oil Pressure Sensor For Cummins / WEICHAI

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Technical Data

• Operating voltage:6 ~ 24V
• Conducting power: < 5W
• Operating temperature: -25 ~ 120℃(120℃ MAX 1H)
• Measuring range: 0 ~ 5Bar or 0 ~ 10Bar
• Alarm: 0.8Bar or 1.4Bar
• Output signal: Standard resistance value: 10 ~ 184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M10X1, M12x1.5 or customized as requires.
• Protection rank: IP66

Function

Monitoring engine oil pressure status

Feature

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to Hex nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

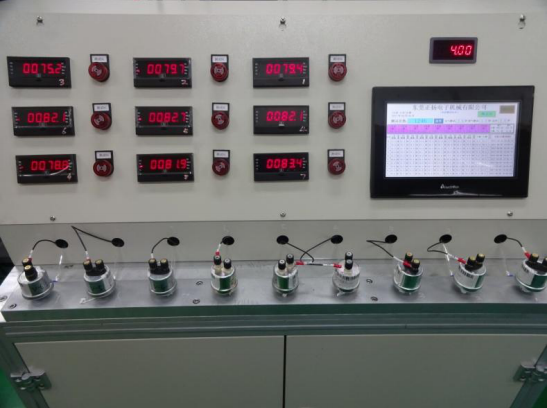

                                              Basic Function Test

                                                       Life Test

                                               Vibration Test

                                              Vibration Test Parameters

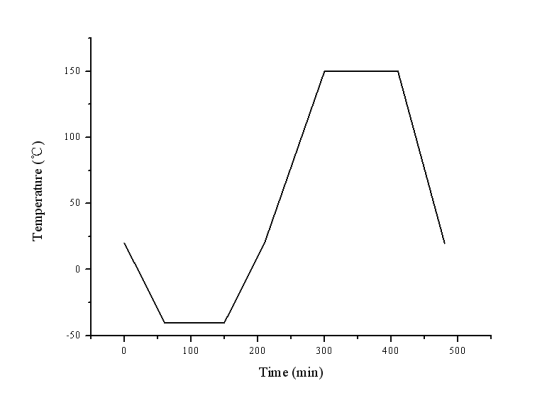

                                             Temperature Cycling Parameters
