JQX-38F 3PTD Automotive Power Relay 220VAC Voltage

Price Negotiable

Price: Negotiation

MOQ: 100

Delivery Time: 20-35 WORK DAYS

Brand: Mirote

Product Description

JQX-38F 3PTD 220VAC Voltage Eletromagnetic Power Relay

2. Specification

40A switching capabilities
11 pole configurations
1.5KV dielectric between coil to contacts
Various terminals available
Various sockets available
Conform to the CE low voltage directive

Contact Data

Contact Form	2Z, 2H, 2D, 3Z, 3H, 3D
Contact Resistance	<100mΩ(at 1A 6VDC)
Contact Material	AgCdO AgSnO₂
Contact Capacity	A: 40A 250VAC/30VDC B: 30A 250VAC/30VDC
Mechanical Life	2x 10⁷ OPS
Electrical Life	2x 10⁵ OPS

Coil Data

Nominal Voltage(VDC)	Operate Voltage VDC	Release Voltage VDC	Coil Resistance Ω
12	9.6	1.2	57 ± 10%
24	19.2	2.4	230 ± 10%
48	38.4	4.8	920 ± 10%
60	48.0	6.0	1440 ± 10%

Nominal Voltage(VAC)	Pick up Voltage VAC	Drop-out Voltage VAC	Coil Resistance Ω
12	9.6	3.6	10 ± 10%
24	19.2	7.2	40.3 ± 10%
110	88.0	36.0	847 ± 10%
220/240	176.0	72.0	3380/4030 ± 10%

Charateristics

Initial Isulation Resistance		>1000MΩ(500VDC)
Dielectric Strength	Between Coil and Contacts	2500VAC 1min
	Between Open Contacts	1200VAC 1min
	Between Contact Sets	2500VAC 1min
Operate Time(at nomi. Volt)		25ms
Release Time(at nomi. Volt)		15ms
Shock Resistance	Functional	100m/s²
	Destructive	1000m/s²
Vibration Resistance		1 mm, 10 to 55HZ
Humidity		98% RH, + 40℃
Ambient Temperature		-40 ℃ to + 70 ℃
Termination		PCB & Plug-in
Unit Weight		37g
Construction		Dust Cover

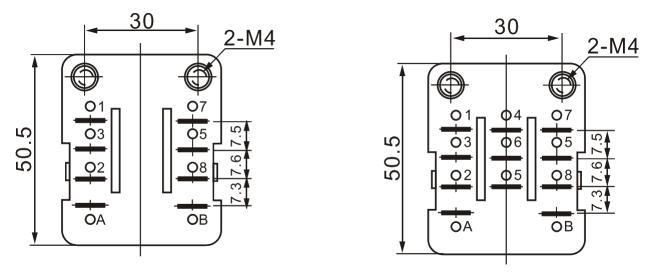

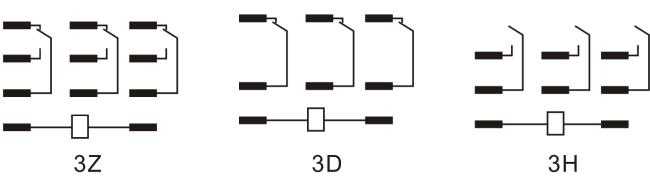

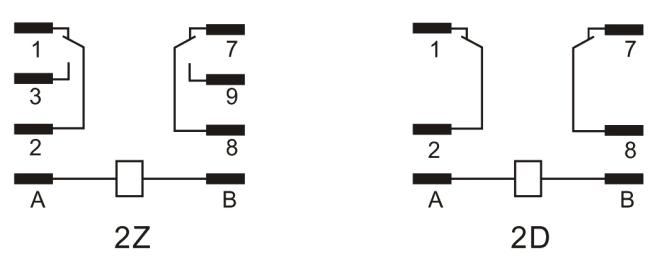

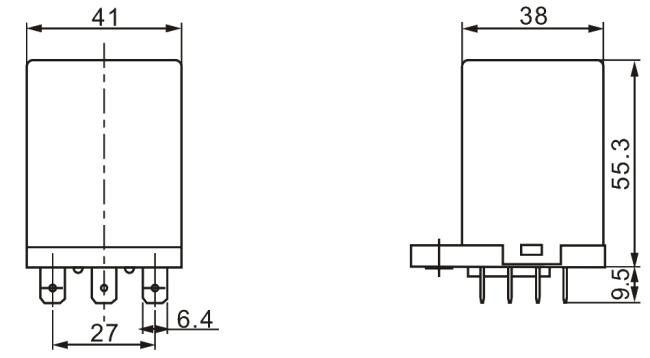

3. Diagram
