Mini 180g Cm 300g Cm Nema 8 Bipolar Stepper Motor 20mm 0.8A
Hybrid Mini Stepper Motor Nema8 20mm Unipolar Step Motor 180g.cm 300g.cm
A hybrid stepper motor has an axially magnetized rotor, meaning one end is magnetized as a north pole, and the other end a south pole. Toothed rotor cups are placed on each end of the magnet, and the cups are offset by half of a tooth pitch.
1.Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
2.Electrical Specification:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Motor Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | Kg | |
| JK20HS30-0604 | 1.8 | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 0.06 |
| JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 1.7 | 200 | 4 | 0.07 |
| JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 300 | 4 | 0.08 |
| JK20HS42-0804 | 1.8 | 42 | 0.8 | 5.4 | 1.5 | 400 | 4 | 0.09 |
Matching Stepper motor Driver: JK0220
3.Dimensions: (Unit=mm)
4.Drawing:
5.Our service

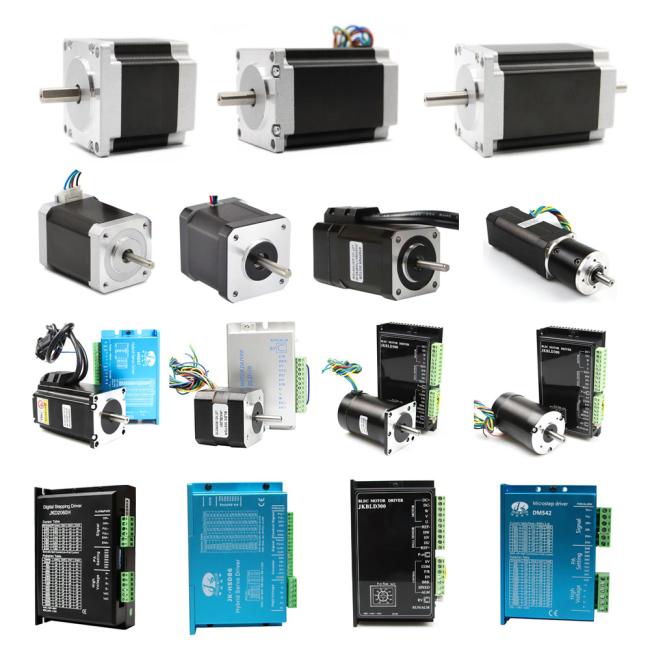

We do also manufacture other products,such as
Nema8 , nema11 , nema14 , nema17 , nema23 , nema24 , nema34 , nema42 , nema52 stepper motor;
Nema11 , nema17 , nema23 , nema24 , nema34 stepper motor with gearbox.
Linear stepper motor , closed loop stepper motor , stepper motor with brake , stepper motor sriver;
42mm , 57mm , 60mm , 80mm , 86mm , 110mm , 130mm brushless dc motor;
Bldc motor with gearbox , bldc motor driver;
Brush dc motor , spindle motor , ac servo motor kit , couplings , pulley , power supply and so on.
6.Advantages of Hybrid Stepper Motor
The advantages of the Hybrid Stepper Motor are as follows:-
- Low cost for control achieved
- High torque at startup and low speeds
- Ruggedness
- Simplicity of construction
- Can operate in an open loop control system
- Low maintenance
- Less likely to stall or slip
- Will work in any environment
- Can be used in robotics in a wide scale.
- High reliability
- The rotation angle of the motor is proportional to the input pulse.
- The motor has full torque at standstill (if the windings are energized)
- Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
- Excellent response to starting/stopping/reversing.
- Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
- The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
- It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
- A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
