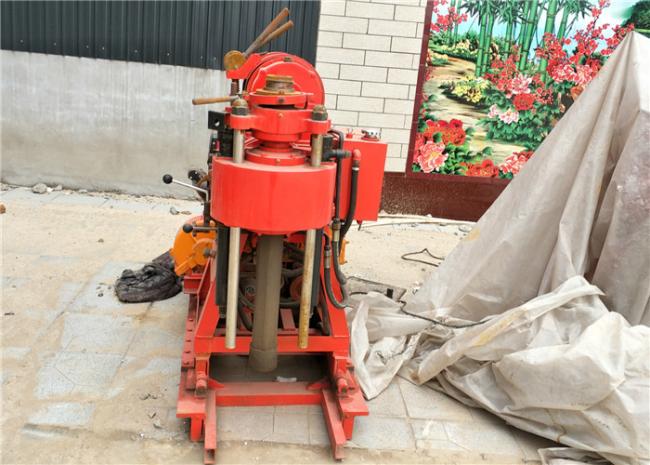

High Detachable Water Well Drilling Rig GK-180 For Railways / Core Drilling
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Within 7-12 days
Brand:
ShiTan
Product Description
High Detachable Water Well Drilling Rig GK-180 For Railways / Core Drilling
Features:
- With hydraulic automatic feeding device,elevated drilling efficiency.
- Large torque and drilling diameter
- With a spherical jaw holding mechanism and the rod replacement without breakdown,high eficiency
- Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains or mountain areas.
Product Description
| GK-180 Drilling rig | |
| Drilling depth | 180m |
| Drill rod caliber | 42mm |
| Hole diameter | 75mm |
| Drilling angle | 90°-75° |
| Dimensions | 2120*875*1480mm |
| Weight(without power unit) | 750kg |
| Swivel head | |
| Spindle speed | 71,182,310,790r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max. | 15KN |
| Spindle lifting capacity max. | 25KN |
| Spindle max.torque | 1.5KN.m |
| Brake diameter | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max. lifting capacity | 20KN |
| Hoisting drum revolution | 20,39,85,170r/min |
| Drum diameter | 140mm |
| Wire rope diameter | 9.3mm |
| Wire rope capability | 40m |
| Oil pump | |
| Model | YBC-20/125 |
| Rated presure | 12.5Mpa |
| displacement | 20ml/r |
| rated speed | 800-2500r/min |
| Water pump | |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Rated power | 16.2KW |
| Rated speed | 2200r/min |
