High brightness 6000nits Front service P6.67 Outdoor Fixed LED Video Display Board Banner

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 25-30days
Brand: Bako
Product Description

High brightness 6000nits Front service P6.67 Outdoor Fixed LED Video Display Board Banner



P6.67 Outdoor Fixed LED Display Specs



Model ODF-6
Pixel Pitch 6.67mm
Pixel Density 28224 pixels/m2
LED Type SMD2727
LED Configuration 1R1G1B
Cabinet Dimension 960mm*960mm
Cabinet Resolution 144*144pixels
Cabinet Weight 65kg
Cabinet Material cold steel
Ingress Protection
(front/rear)
IP65/IP54
Brightness >5500nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/8 scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1920Hz
Gray Scale 16bit
Power Consumption(avg.) 250w/m2
Input Voltage AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH
/ 10%~85%RH
MTBF ≥1000hrs
Life Span ≥50000hrs



     In some cases, esp. for small advertising sign, clients prefer front service panels.

Normally we have two solution for this front service panels: one is front-opened panels with hydraulic bar which can be opened from the front of cabinet, the other is front service modules which can be taken off directly from the front of panel. About these two solutions, pls check following pictures:

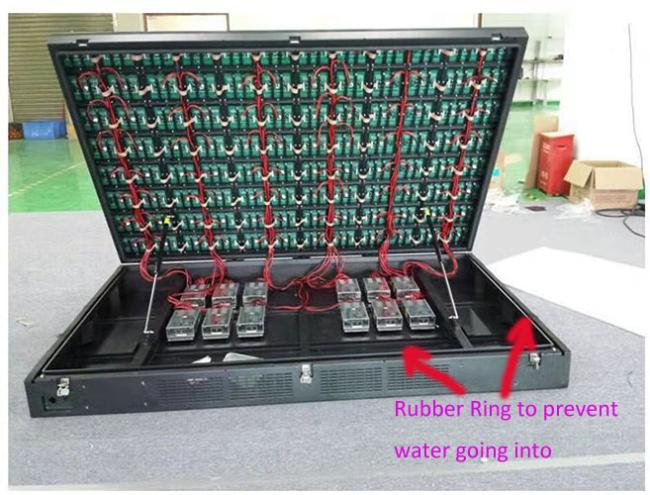

Solution 1: Front open panels with hydraulic bar

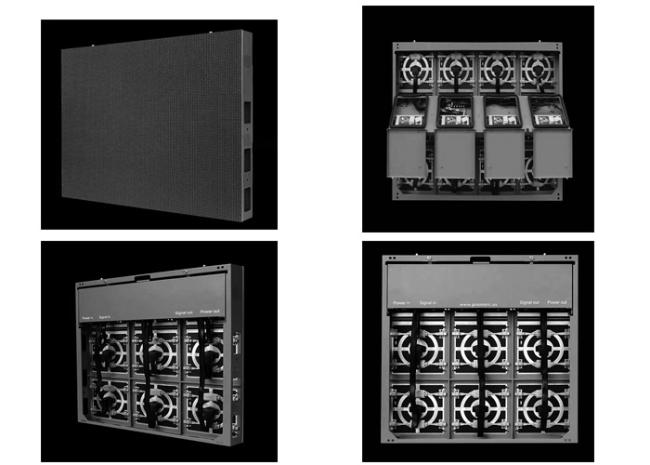

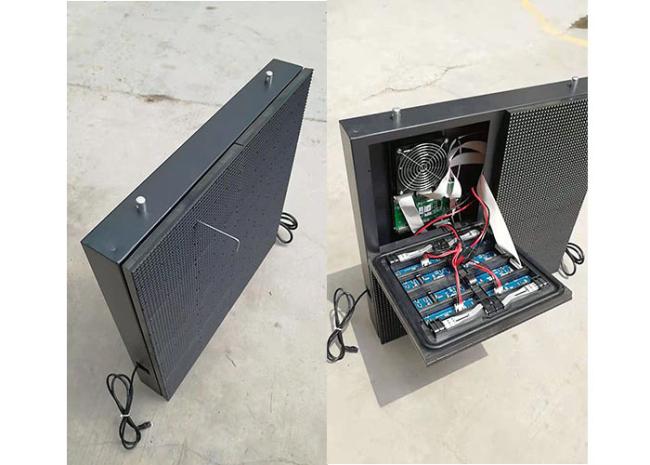

Solution2: front service modules which can be taken off from the front of panel

The cabinet is customized, it depends on your need.

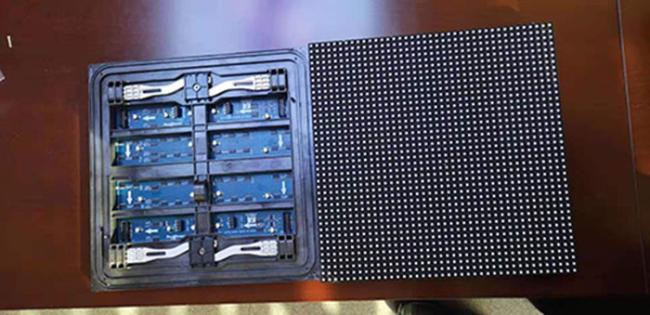

Here is our front service panel with IP68 led module

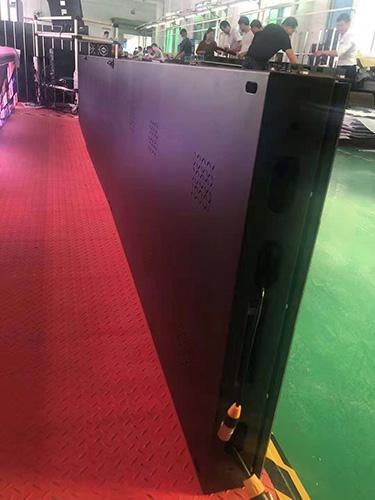

Here is our front service panel with IP68 led module. Pls note that this cabinet backdoor is sealed,

so at the back is IP68.

So pls let me know which model you prefer, pls let us know, we will offer you best solution.



Why choose us?

1. we are engaged in led display manufacture for more than 12 years;

2. We not only high quality products, but also full package service, including offer professional solution, installation guide, free training,

24 hours online after-sales service;

3. Exported to more than 200 countries, 95% of clients gave positive comments on our products;

4. Participate fairs like ISE, Infocomm, ISA, Prosound & light show, etc;

5. Before delivery, every panels are under 3 days full-white testing;
