P4.8 Outdoor Rental LED Display Die-casting Aluminum Structure High Resolution Seamless Splicing
P4.8 Outdoor Rental LED Display Die-casting Aluminum Structure High Resolution Seamless Splicing
Product Description
- High refresh rate : >1500Hz,no scanning line when photographed.
- High gray level: 256 RGB each, display 16.7million colors, vivid and perfect video effect.
- High resolution: The most apparent features of the new generation of LED display, clearer picture.
- High contrast ratio : make the picture more delicate.
- Wide viewing angle: both horizontal and vertical viewing angles are 140°
- Working status indicator available.
- Optional of Convex Shaped, Concave Shaped and Wave Shaped screens.
- Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm), greatly saves transportation costs and labor costs.
- Rental die-casting aluminum structure: rock solid, not easy to deform.
- Seamless splicing : give you a better visual experience.
- Quick lock system, easy installation : quick installation, complete the installation in a few seconds.
- High Ingress protection: IP65/IP54(front/rear), IPXX—The first X indicates the dust level, and the second X indicates the waterproof level. IP65 means the product can completely prevent dust from entering and can be washed with water without any damage.IP54 means the product can prevent harmful dust accumulation and the liquid splashes from any direction to the outer shell without damage.
- High Brightness: >6500nits,brightness automatically adjusted, Clearly visible even in direct sunlight.
- Lower power consumption: Average Power Consumption is 420w/m²,energy saving and environmental protection.

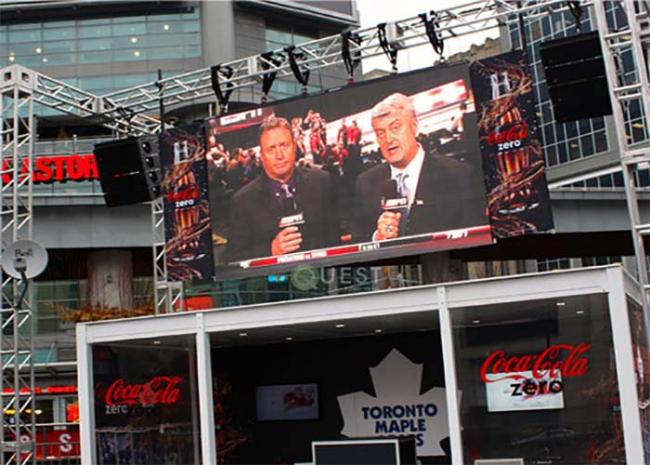

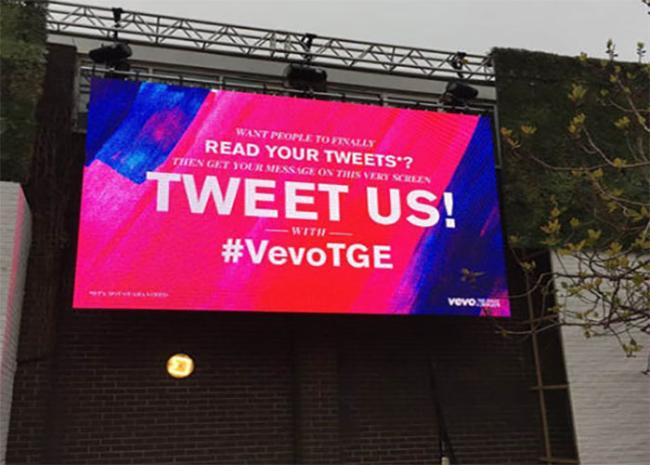

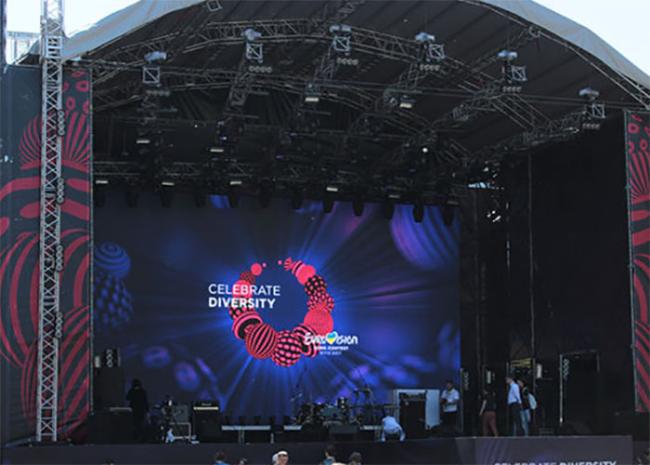

Application
Widely used in stage rental, singing and dancing events, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-purpose halls, conference rooms, interpretation halls, dibars, nightclubs, high-end entertainment discos, etc.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training).
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
Technological Parameters:
| Model | ORA-4.8 |
| Pixel Pitch | 4.8mm |
| Pixel Density | 43264 pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 104*104px/104*208px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/13 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
