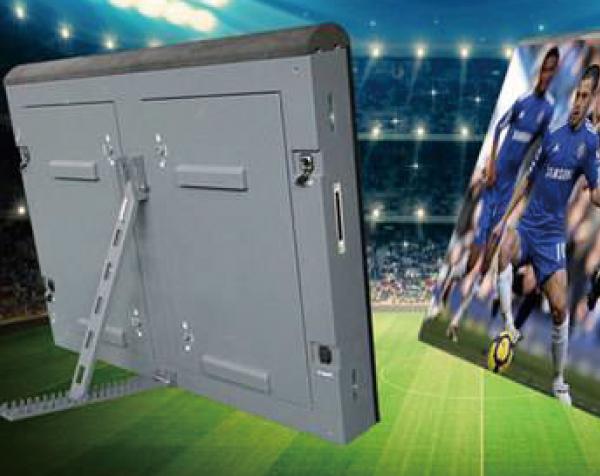

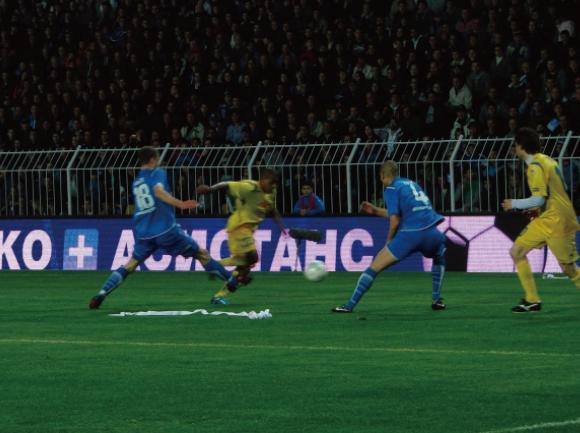

P8/P10/P16mm Stadium Perimeter Led Display , Led Stadium Advertising Boards
P8/P10/P16mm Sports Perimeter LED Display For Stadium Perimeter
Advantages
- Fast cooling: Excellent hest dissipation performance to protect the module circuit.
- Megnetiic modules, front and rear access.
- Good waterproof protection: Front is IP65 and back is IP54.
- Suitable brightness ajustable for outdoor day and night.
BSP/Specification
| Physical Pitch | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density |
15,625 pixels/m² |
10,000 pixels/m² |
3,906 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 | 320*320 | 256*128 |
| Panel Dimensions(mm) | 1280*768*187 | 1280*960*187 | 1280*896*187 |
| NO. of Modules Per Panel (W*H) | 5*3 | 4*3 | 5*7 |
| Physical Resolution of Module(W*H) | 32*32 | 32*32 | 16*8 |
| Weight(kg/m²) | 70/50 | 70/50 | 70/50 |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Viewing Angle |
H: 140° V: 120° |
H: 140° V: 120° |
H: 140° V: 120° |
| Expected Lifetime | 100,000Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
-20℃-50℃/ 10%-90% |
-20℃-50℃/ 10%-90% |
-20℃-50℃/ 10%-90% |
| Storage Temp/Humidity |
-20℃-50℃/ 10%-90% |
-20℃-50℃/ 10%-90% |
-20℃-50℃/ 10%-90% |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| Driving Method | 1/40 | 1/40 | 1/8 |
| Average Power Consumption | 360W/Panel | 360W/Panel | 360W/Panel |
| Max Power Consumption | 900W/Panel | 900W/Panel | 900W/Panel |
About our product
Outdoor Rated
● IP65 rating for front and rear
● Suitable brightness adjustable for outdoor day and night
● 5500-8000 nits brightness
Superior Electrical Features
● Vivid and brilliant colors
● 16 Bit signal processing, 2500-4000Hz refresh rate
● Built-in data and power redundancy for ultimate reliability
● IP65 rating for front and rear
● Suitable brightness adjustable for outdoor day and night
● 5500-8000 nits brightness
Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick & easy installation
● Front and rear access
● Fast access to modules, cables, power and data boxes

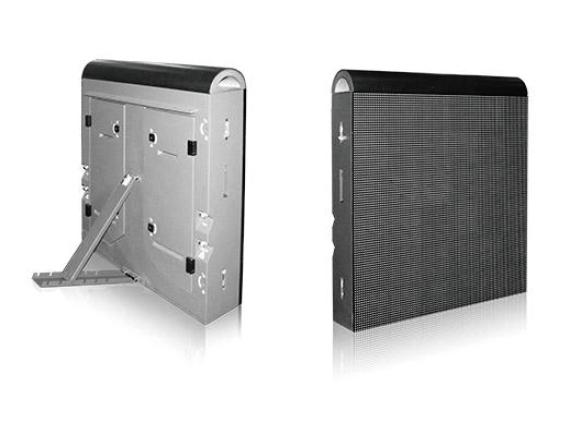

Versatile Dual Purpose Design
● Removing the ground adjustable bracket and protection foam bumper can be transformed to be a square solid screen
● Available for truss hanging, ground stacking, wall mounting

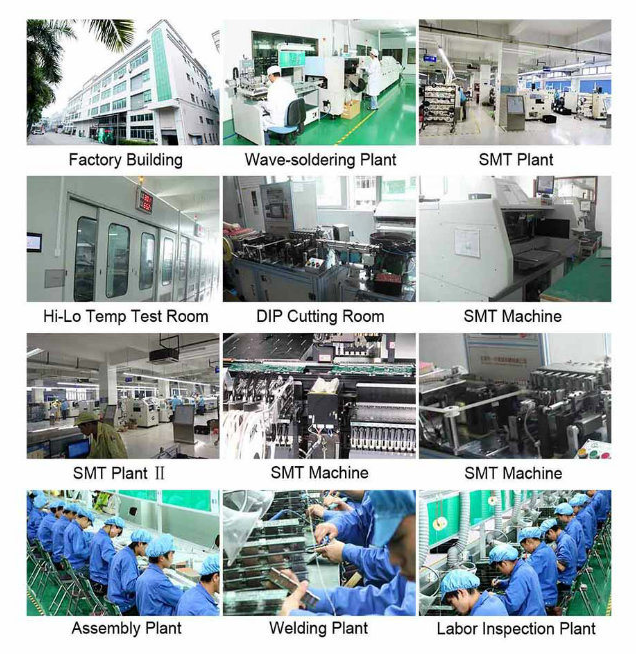

Our Company
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
FAQ
Q1:Can you tell me why I should choose your company ?
A1:Concentration makes professional .Professional achieves successful .
Our Bako vision have 14 years professional led technical experience .we have our own factory, we are largely expanding our international market.From 2005 to 2019, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .
Q2:What's the warranty of your LED Display ?
A2: 2-5 years warranty .and 100,000hrs life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
Q3: What's your payment term? How long is your delivery time ?
A3: We accept T/T ,L/C,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.
Q4:Can you visit our factory in China?
A4:Usually except our staff,other persons are not allowed to visit the factory,as you know it is not good for workers to produce intently.But,of course,our factory is open to our customers,very welcome to visit us,and the person who is responsible will guide you to scan the workshop every step,you will know the rough producing situation,then you will be trustfull to us.Business is long time cooperation.Trust is the most important between each other.I think we can not only do business together,but also can be good friends.The future is belonging to both of you and us.
