IP65 High Protection Outdoor Fixed LED Display 16 Bit For All Weather Conditions
IP65 High Protection Outdoor Fixed LED Display For All Weather Conditions
Key Feature
- The brightness can be over 6500 nits, high enough for outdoor daytime use.
- Aluminum material, elegant, durable, better heat eliminable and much lighter,
- Long service life lowers the cost of usage and maintenance.
- Economic al and practical: High performance and high quality make it cost less.
BT/Specification
| Physical Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2727 |
| Pixel Density |
160,000 pixels/m² |
111,111 pixels/m² |
40,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Physical Resolution of Module(W*H) | 64*64 | 64*32 | 32*32 |
| Frame size (mm) | 1,100 (L) x 410 (H) 164 (bottom) / 99 (top) |
820 (L) x 390 (H) (top) |
1,100(L)x410 (H) 164(bottom) / 99 (top) |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| IP Rating | IP65 | IP65 | IP65 |
| Viewing Angle |
H: 140° V: 120° |
H: 140° V: 120° |
H: 140° V: 120° |
| Expected Lifetime | 100,000Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
-40℃-75℃/ 10%-90% |
-40℃-75℃/ 10%-90% |
-40℃-75℃/ 10%-90% |
| Storage Temp/Humidity |
-30℃-60℃/ 10%-60% |
-30℃-60℃/ 10%-60% |
-30℃-60℃/ 10%-60% |
| Servicing | Back | Back | Back |
| Driving Method | 1/16 | 1/16 | 1/8 |
| Average Power Consumption | 180W/Set | 180W/Set | 180W/Set |
| Max Power Consumption | 480W/Set | 480W/Set | 480W/Set |
Our BT product
High Brightness
● 3500-7000 nits brightness
● High bright SMD
● High efficiency PSU
Package
Typical Application

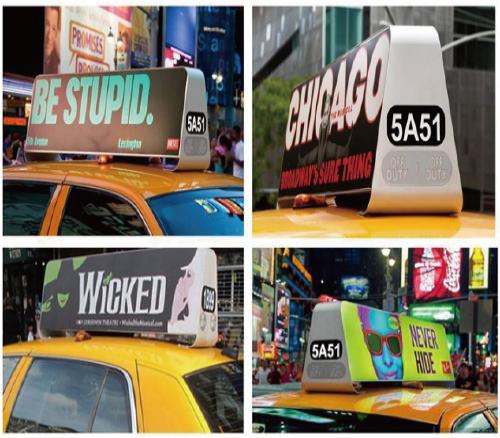

- Taxi, Bus , Car show, Fashion Store, DOOH
- Advertising, Reception Hall, Opera House, Wedding Hall,
- Stadium, Shopping Mall, DJ Touring, Theme Resort
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
