Commercial Outdoor Fixed LED Display P6.67mm Advertising Digital Billboard SMD 2727

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 20 days
Brand: BAKO VISION
Product Description

Commercial Outdoor P6.67mm Led Advertising Digital Billboard Waterproof
Main advantages:

1. Customized, Can be flat screen and curved screen, one screen, multiple use, you can shape anything you want.
2.The resolution is 30976 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance.
3. Clear Vivid Image Quality, even in direct , full-on sunlight to ensure you attracts more
audience to get short ROI of your LED screen's investment.
4. Good waterproof protection: Front is IP65 and back is IP54.



4. Low power comsumption. The working voltage is 5V, which is very safe to use. Reducing the voltage to receive energy saving between 40% and 20%
5. Fixed installation is not easy to shift, and front maintenance is convenient for maintenance.




Specifications

 BOF-6.67
Physical Pitch6.67 mm
Pixel ConfigurationSMD 2727
Pixel Density22,500 pixels/m²
Module Dimensions(W*H)(mm)320*320
Panel Dimensions(mm)1280*960*150
NO. of Modules Per Panel (W*H)4*3
Physical Resolution of Module (W*H)48*48
Physical Resolution of Panel (W*H)192*144
Panel MaterialSteel/ Aluminum
Colors281 trillion
Brightness>6,500 nits
Weight (kg/m²)65/45
Processing16 bit
Refresh Rate>1920 Hz
IP RatingIP65/ IP54
Viewing AngleV:160 degree
H: 140 degree
Expected Lifetime100,000 Hrs
Operating Temp/Humidity-20ºC-50ºC/
10%-90%
Storage Temp/Humidity-20ºC-50ºC/
10%-90%
Avg./ Max. Power Consumption360/900W/ panel
ServicingFront/Rear


Procesure Details

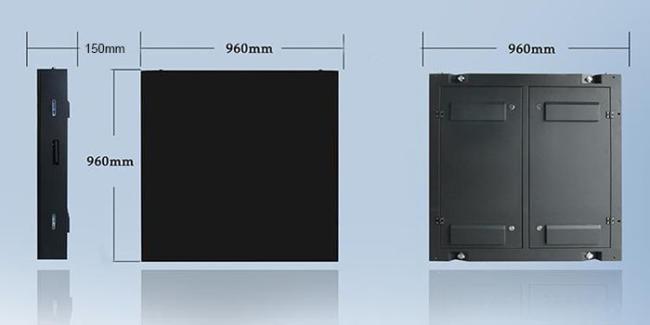

We also have the 960*960mm cabinet, with the Steel material ,and the tickness is 150mm, really robust, sturdy and conventional, commerical by our client to make the choice.

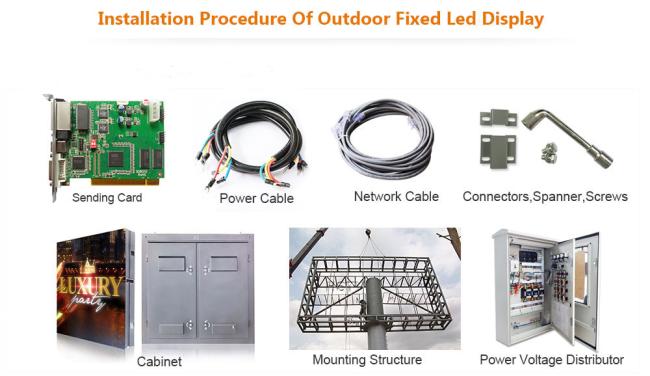

2. In Installation (relate the accessory)
We provide synchronous or asynchronous operating systems, you have the flexibility to choose your way.You could push the image or words into a global screen and monitor it in the office .Of course, no matter the brightness or the playing contents can also be adjusted.You can remotely control the brightness of the screen, as well as the content and time it plays.

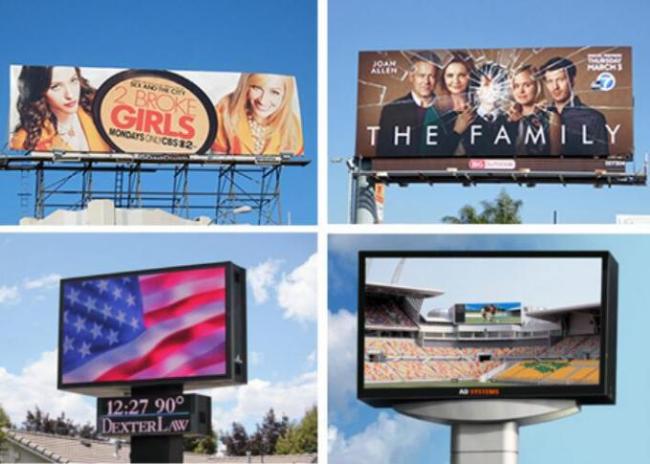

Widely Application:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc



Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.




Quality assurance

  1. Every production process has a special person to test 72 hours to ensure quality.
  2. Have professional engineers to check the quality.
  3. All products have passed CE, FCC, ROHS and other certifications.
  4. We have the local agency and you can enjoy the local service.

Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
