Thin Flexible Indoor Rental LED Display Advertising P3.91 P4.81mm Die Casting
Indoor thin flexible Die-casting rental LED sign P3.91/P4.81mm advertising led display
Fast delivery stock 500x500mm 500x1000mm cabinet SMD 1921 low price p4.81 p3.91 indoor rental led display
Product Feature:
1. Classical and stable strucrure and performance.
2. Two patent protected strong locks design, realizing combination of reliablity and security.
3. Die-casting aluminum body, light weight for easy transportation and high accuracy installation.
4. Perfectly be compatible with any existing controller and without screen shaking/quick flashing/mosaic problems.
5. Supporting installation of hanging/ground mounting, for stage/TV show/studio, and other event applications.
6. Tool free assembly and disassembly.
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
7. thin and light design,one person can handle the installation;
8. 500x1000mm big panel, speedily and easily mounting, perfect 16:9 colorful image;
9. Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
10. Natural aluminum heat conduction design (no-cooling fan),quiet world.
Parameter (you can click on this and then you will get the catalogue► )
| BIR-III-3 | BIR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |

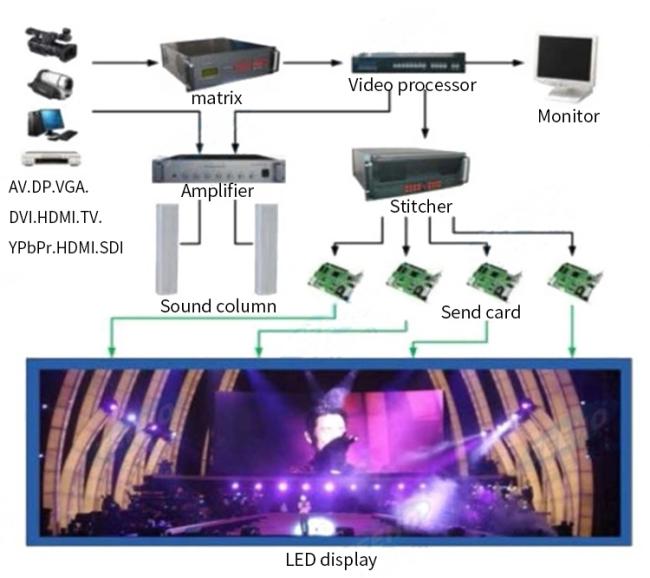

System topology
1. High definition effect comes with uniform luminance and soft color is suitable for indoor close range viewing.
2. High refresh rate and high gray scale to make the picture vivid which meets the demand of high visual quality of commercial usage.
3. Constant current chip driving reduces the power consumption and prompts the stability, simple modular design is low cost and easy to maintain.
1) According to environmental changes the brightness can be adjusted automatically for energy saving.
2)Special PVC kits is suitable for different weather conditions.
3) Auto power on/off, work unattended & Electrical surge protection.
Packaging and Shipping
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 23 working days after receiving 30% deposit and balance before the shipment
3. Price terms: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen port
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
After service
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In producing:
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
After service:
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service
