3 Phase Cast Iron Submersible Sewage Pump For Raw Rain Water Wastewater
WQ Flow 5-4500m3/h Cast Iron Raw Rain Water Wastewater Submersible Sewage Pump
WQ submersible sewage pump overview:
WQ submersible sewage pump is sewage pump developed on the basis of the introduction of foreign advanced technology.
WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have strong drainage capacity.
- Type: WQ series sewage pump
- Power: 2.2kw-220kw
- Voltage: 380v/440v or customized
- Frequency: 3 phase 50hz/60hz
- Flow: 5-4500m3/h
- Head: 5-200m
- Material: Cast iron or stainless steel
WQ submersible sewage pump applications:
-
Raw water, rain water
-
Municipal and industrial waste water
-
Sewage treatment
-
Construction
-
Other industrial applications
WQ submersible sewage pump features:
- Compact structure, easy to use, easy installation
- Specially adopting cyclone type and double flow type impeller, strong pollution discharge capacity.
- The motor adopt hard corrosion-resistant single and double end face ceramic seal, good anti leakage effect, the motor running more safe and reliable.
WQ submersible sewage pump overview:
WQ submersible sewage pump parameters:
| Model |
Capacity (m3/h) |
Head (m) |
Power (kw) |
|
WQ15-40/1 |
15 |
40 |
5.5 |
|
WQ30-20/1 |
30 |
20 |
5.5 |
|
WQ15-50/1 |
15 |
50 |
7.5 |
|
30 |
35 |
7.5 |
|
|
15 |
60 |
9.2 |
|
|
140 |
10 |
9.2 |
|
|
WQ15-80/1 |
15 |
80 |
11 |
|
150 |
11 |
11 |
|
|
100 |
20 |
13 |
|
|
200 |
12 |
15 |
|
|
WQ180-15/1 |
180 |
15 |
15 |
|
300 |
10 |
18.5 |
|
|
200 |
16 |
18.5 |
|
|
50 |
80 |
22 |
|
|
300 |
12 |
22 |
|
|
200 |
20 |
25 |
|
|
100 |
50 |
25 |
|
|
300 |
16 |
30 |
|
|
100 |
60 |
30 |
|
|
WQ200-30/1 |
200 |
30 |
30 |
|
100 |
60 |
30 |
|
|
200 |
40 |
37 |
|
|
300 |
25 |
37 |
If these submersible sewage pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable pump model for you.
WQ submersible sewage pump using condition:
- Voltage 380V or 660V (allowance error: 5%), 50Hz, three-phase alternating-current supply
- solid material volume ratio in pumped medium should be below 2%, Maximum pumped medium density is 1.2*103kg/ m3
- PH value should be 4-12
- Temperature should be not less than 50℃

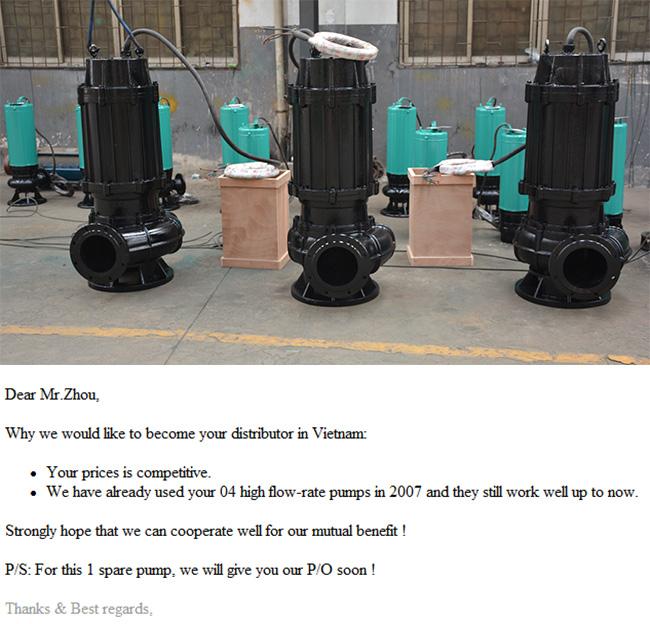

Customer Case
1. Flow: 300m3/h
2. Head: 20m
3. Power: 37kw
4. Frequency: 380v/60hz
Our sewage submersible pump has beed worked for 11 years !
