Commercial Electric Deep Well Submersible Pump / Underwater Submersible Pump
commercial electric 14" 75kw 250m3/h deep well submarine water submersible borehole pump
50 85 100 hp water submersible pump parameters:
(cast iron or stainless steel 304/316/316l/duplex stainless/super stainless steel/ss904l and 380v/440v/480v/600v/ 660v/1140v. Please kindly choose submersible pump type or send inquiry enquiry02@apkpump.com/ Whatsapp: +86 17537187726.)
|
Diameter |
Model |
Power |
Flow |
Head |
|
|
Inch(") |
QJ type |
kw |
hp |
m3/h |
m |
|
14" |
350QJ250-25/1 |
30 |
40 |
233-267 |
22-28 |
|
14" |
350QJ250-50/2 |
63 |
85 |
233-267 |
47-53 |
|
14" |
350QJ250-75/3 |
90 |
120 |
233-267 |
72-78 |
|
14" |
350QJ250-100/4 |
125 |
170 |
233-267 |
95-105 |
|
14" |
350QJ250-125/5 |
160 |
220 |
233-267 |
120-130 |
|
14" |
350QJ320-20/1 |
30 |
40 |
305-335 |
18-22 |
|
14" |
350QJ320-30/1 |
45 |
60 |
305-335 |
28-32 |
|
14" |
350QJ320-40/2 |
63 |
85 |
305-335 |
38-42 |
|
14" |
350QJ320-60/2 |
90 |
120 |
305-335 |
57-63 |
|
14" |
350QJ320-90/3 |
140 |
190 |
305-335 |
85-95 |
|
14" |
350QJ320-120/4 |
185 |
250 |
305-335 |
115-125 |
14 inch deep well submersible pump performance range:
1. Diameter: 14 inch submersible pump
2. Flow: 233m3/h-335m3/h
3. Head: 19m-130m
4. Power: 30kw-185kw (40hp-250hp)
5. Voltage: 380v/440v/460v/480v/600v/660v/1140v
6. Material: Cast iron/stainless steel 304/316/316l/duplex stainless/super duplex stainless steel/904l
7. Features: high flow; corrosive resistant
8. Spare parts: control cabinet, freqneucy, cables
Testing: We test each submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.Also we could send testing video, testing pictures, testing report, raw material testing report.

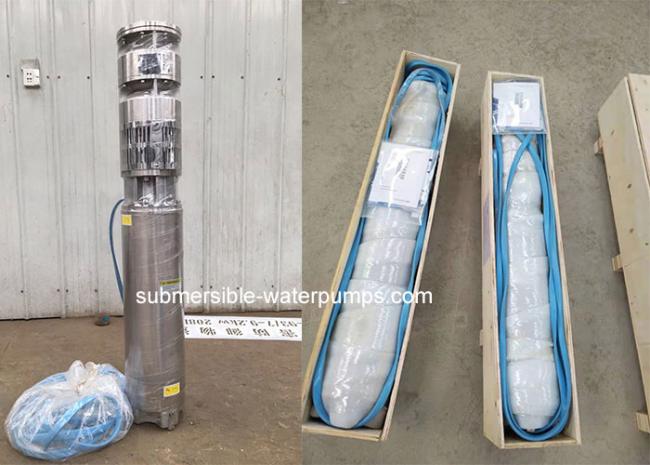

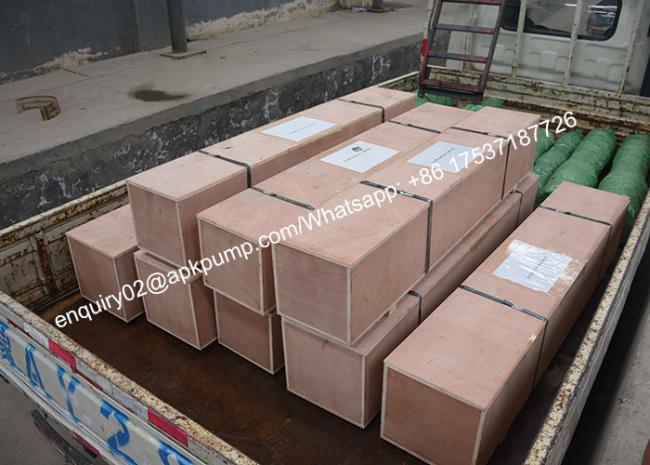

Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption,moisture-proof package, standard export wooden case
FAQ:
Q: What is the payment terms?
A: 30% T/T in advance, 70% before shipment, L/C at sight .
Q: What is your delivery time?
A: Within 7-15 working days after receiving deposit.
Q: What is your MOQ of this item ?
Q: Can we type our brand on it?
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port,China or as your request
