22kw 30hp Agriculture Irrigation Submersible Water Pumps
22kw 30hp Agriculture Irrigation Submersible Water Pumps
How to get quote ASAP?
*what the water pumps head and water capacity?
*How about voltage and frequency 380v or 440v/460v, 50hz or 60hz
*What′s the temperature of water?
*What the material, cast iron or stainless steel?
22kw 30hp water submersible pump parameters:
|
Diameter |
Model |
Motor Power |
Flow |
Head |
|
|
Inch (") |
QJ types |
kw |
hp |
m3/h |
m |
|
8" |
200QJ20-189/14 |
22 |
30 |
18-22 |
160-217 |
|
8" |
200QJ20-202/15 |
22 |
30 |
18-22 |
172-232 |
|
8" |
200QJ25-168/12 |
22 |
30 |
23-27 |
140-195 |
|
8" |
200QJ25-182/13 |
22 |
30 |
23-27 |
150-210 |
|
8" |
200QJ32-128/8 |
22 |
30 |
29-35 |
106-150 |
|
8" |
200QJ32-130/10 |
22 |
30 |
29-35 |
108-155 |
|
8" |
200QJ32-143/11 |
22 |
30 |
29-35 |
121-170 |
|
8" |
200QJ32-144/9 |
22 |
30 |
29-35 |
123-172 |
|
8" |
200QJ40-117/9 |
22 |
30 |
37-43 |
94-140 |
|
8" |
200QJ50-90/6 |
22 |
30 |
46-54 |
72-108 |
|
8" |
200QJ50-91/7 |
22 |
30 |
46-54 |
73-110 |
|
8" |
200QJ63-70/5 |
22 |
30 |
58-68 |
60-82 |
|
8" |
200QJ80-66/6 |
22 |
30 |
74-86 |
56-75 |
|
8" |
200QJ100-45/3 |
22 |
30 |
80-120 |
42-47 |
|
10" |
250QJ63-80/4 |
22 |
30 |
58-68 |
68-92 |
|
10" |
250QJ80-60/3 |
22 |
30 |
74-86 |
51-69 |
|
10" |
250QJ160-30/2 |
22 |
30 |
148-172 |
25-35 |
|
12" |
300QJ240-22/1 |
22 |
30 |
223-257 |
18-25 |

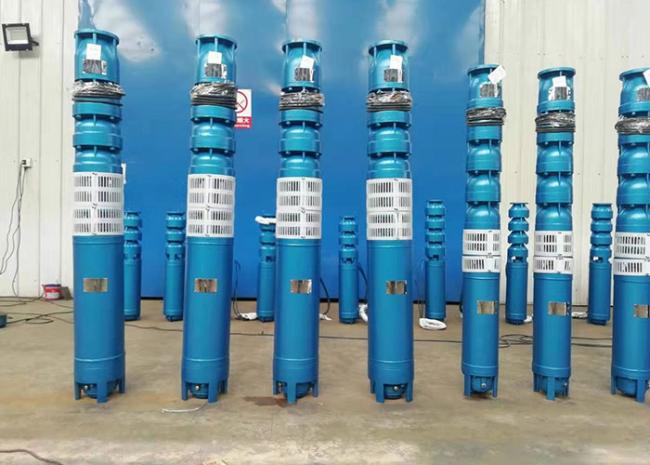

10 inch 80m3/h 60m 22kw 30hp deep well water submersible pump
Material of other parts can be consulted and disucssed in details.
*Impeller: the new casting technology is adopted, and the hydraulic performance of the pump is up to the national standard.
*Electric motor water-resistant electromagnetic wire: using three layers of insulation performance, excellent insulation performance, cold resistance, acid and alkali salt resistance; using copper content oxygen free copper as conductor core, low resistance, high conductivity.
*Pump shaft: 30Cr13 stainless steel, high strength, good abrasion resistance and corrosion resistance.
*Rotor components: rotor shaft is made of 30Cr13 stainless steel, and rotor is tested for dynamic balance, so that it runs smoothly and reliably.
Working condition:
(1) Three-phase AC power supply of rated frequency at 50HZ and rated voltage at 380±5%V.(user voltage at 660V shall be otherwise specified)
(2) Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meters below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well.
(3) Generally, water temperature shall not be higher than 30℃.
(4) Water quality requirements :
① Sand content in water not greater than 0.01%( weight ration)
② PH value between 6.5~8.5
③ chlorine ion content not greater than 400mg/l
